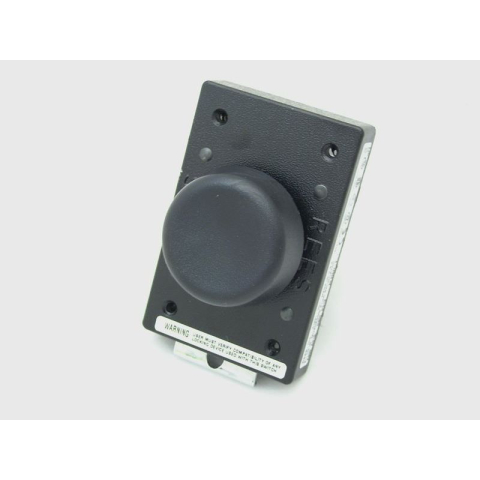

01981-001 2.25" Mushroom Plunger with Spring Latch, Operating Force 11.5 lb by Rees

00 Reviews Write review
01981-001 2.25" Mushroom Plunger with Spring Latch, Operating Force 11.5 lb by Rees
Click to zoom
  • Specification
  • Overview
  • Customers Also Bought
  • Your Recently Viewed Items
  • Reviews
  • Brand:Rees
  • Part #:01981-001
  • SKU:ID94476
Condition: new
Warranty

Overview


Features:

The following switch is a hand operated, spring latchable, control circuit device, rated 'Heavy Duty' normally for use with electromagnetic equipment. The black cover, painted with a dry powder paint, is made from die-cast zinc. The black mushroom plastic plunger is molded from DuPont Delrin 100ST Acetal for improved impact resistance and is solid color throughout.

  • Gold plated contacts eliminate high resistance tarnishing
  • Plated steel latch plate has a 0.31" hole for insertion of a padlock
  • Positive Break Contacts
  • Nema 12/13, IP 65

Each captive terminal will accept (2) #14 AWG stranded wires. Each switch is supplied with all mounting hardware and a solid santoprene rubber gasket which provides an oil tight seal upon installation. The mechanical life of this device is 500,000 operations.

This switch can be found in a variety of uses on industrial machines. Presses and press brakes may use them as "STOP" or "START" buttons.

WARNING: USER MUST VERIFY COMPATIBILITY OF ANY LOCKING DEVICE USED WITH THIS SWITCH

Electrical Ratings:

  • "HEAVY DUTY - A600 / N300"
  • Listed under UL 508 - File # E 58589
  • Certified under CSA C22.2 - File # LR 3648
  • CE Compliant IEC/EN 60947-5-1

Environmental Temperature Range:

  • Operating: +32°F to +131°F (0°C to +55°C)
  • Storage: -40°F to +185°F (-40°C to +85°C)
  • Note: Operating temperatures at 0oC are based on the absence of freezing moisture and liquids.

WARNING

These products should only be used where point-of-operation guarding devices have been properly installed & maintained so that appropriate OSHA and ANSI B11.1 regulations & standards are met. Misapplication of the products on machinery lacking effective point-of operation safeguards can cause serious injury to the operator of that machinery.
