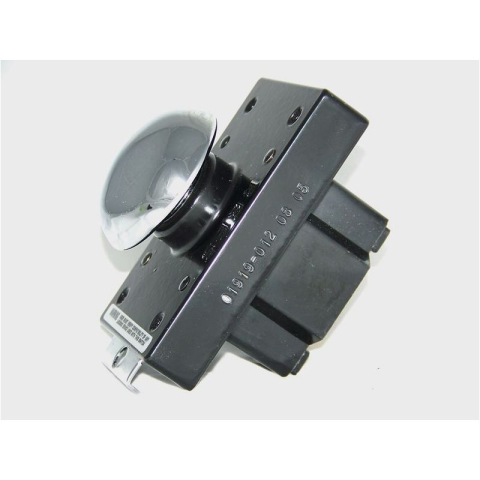

01919-012 2.25" Mushroom Plunger with Spring Latch, Operating Force 5 lb by Rees

00 Reviews Write review
01919-012 2.25" Mushroom Plunger with Spring Latch, Operating Force 5 lb by Rees
Click to zoom
  • Specification
  • Overview
  • Customers Also Bought
  • Your Recently Viewed Items
  • Reviews
  • Brand:Rees
  • Part #:01919-012
  • SKU:ID94475
Condition: new
Warranty

Overview


Features:

The following switch is a hand operated, spring latchable, control circuit device, rated 'Heavy Duty' normally for use with electromagnetic equipment. The black powder coat painted cover and chrome plated mushroom plunger head are made from die-cast zinc.

  • Gold plated contacts eliminate high resistance tarnishing
  • Plated steel latch plate has a 0.31" hole for insertion of a padlock
  • Nema 12/13, IP 65

Each captive terminal will accept (2) #14 AWG stranded wires. Each switch is supplied with all mounting hardware and a solid santoprene rubber gasket which provides an oil tight seal upon installation. The mechanical life of this device is 500,000 operations.

This switch can be found in a variety of uses on industrial machines. Presses and press brakes use them as "STOP" buttons.

This BY-PASS switch is designed with the normal operation of one NO and one NC, when the switch is "Locked Out" BOTH sets of contacts are closed producing an electrical by-pass condition. This switch is normally found on multiple operator presses.

WARNING: USER MUST VERIFY COMPATIBILITY OF ANY LOCKING DEVICE USED WITH THIS SWITCH

Electrical Ratings:

  • "HEAVY DUTY - A600 / N300"
  • Listed under UL 508 - File # E 58589
  • Certified under CSA C22.2 - File # LR 3648
  • CE Compliant IEC/EN 60947-5-1

Environmental Temperature Range:

  • Operating: +32°F to +131°F (0°C to +55°C)
  • Storage: -40°F to +185°F (-40°C to +85°C)
  • Note: Operating temperatures at 0oC are based on the absence of freezing moisture and liquids.

DANGER

These products should only be used where point-of-operation guarding devices have been properly installed & maintained so that appropriate OSHA and ANSI B11.1 regulations & standards are met. Misapplication of the products on machinery lacking effective point-of operation safeguards can cause serious injury to the operator of that machinery.
