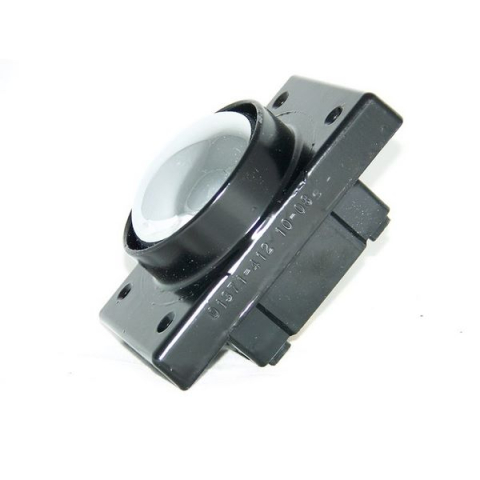

01371-412 2.25" Mushroom Plunger with Shield, Black Cover by Rees

00 Reviews Write review
01371-412 2.25" Mushroom Plunger with Shield, Black Cover by Rees
Click to zoom
  • Specification
  • Overview
  • Customers Also Bought
  • Your Recently Viewed Items
  • Reviews
  • Brand:Rees
  • Part #:01371-412
  • SKU:ID105757
Condition: new
Warranty

Overview


The following switch is a hand operated, control circuit device, rated 'Heavy Duty' normally for use with electromagnetic equipment.  The black cover with integral shield, is made from die-cast zinc and painted with a dry powder paint.  The mushroom plunger head is chrome plated die-cast zinc.

  • Gold plated contacts eliminate high resistance tarnishing
  • Nema 12/13, IP 65

Each captive terminal will accept (2) #14 AWG stranded wires and the contacts are gold plated to eliminate high resistance tarnishing.  Each switch is supplied with all mounting hardware and a solid santoprene rubber gasket which provides an oil tight seal upon installation.  The mechanical life of this device is 1,000,000 operations.

This switch can be found on a variety of machines such as punch presses, press brakes, spot-welding equipment, and in parking garages as 'RUN' , 'START' or 'CYCLE' push buttons.  The shield around the plunger head helps to reduce the amount of contaminates entering the switch.  Its rugged construction and long term reliability make this switch extremely well suited to function within various industrial/commercial environments.

Electrical Ratings

HEAVY DUTY - A600 / N300

Listed under UL 508 - File # E 58589

Certified under CSA C22.2 - File # LR 3648

CE Compliant IEC/EN 60947-5-1

Environmental Temperature Range

Operating: +32oF to +131oF (0oC to +55oC)

Storage: -40oF to +185oF (-40oC to +85oC)

Note: Operating temperatures at 0oC are based on the absence of freezing moisture and liquids.

WARNING - DANGER

These products should only be used where point-of-operation guarding devices have been properly installed and maintained so that appropriate OSHA and ANSI B11.1 regulations and standards are met.  Misapplication of the products on machinery lacking effective point-of operation safeguards can cause serious injury to the operator of that machinery.
