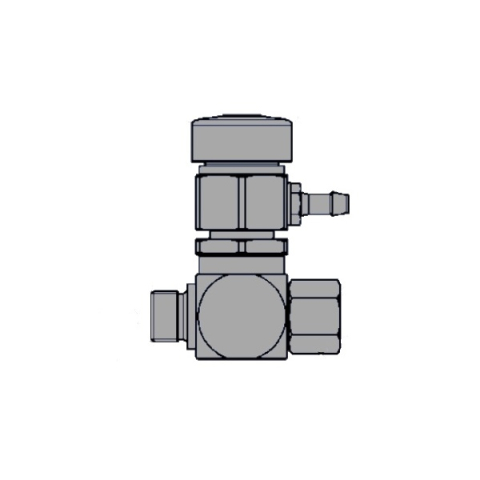

Parker TTA100 1" Pressure Relief Valve with T-Connection
Click to zoom
- Specification
- Overview
- Customers Also Bought
- Your Recently Viewed Items
- Reviews
Overview
Produced for hydraulic systems in whose inflow lines quick connect couplings are used. The system pressure built up between the hydraulic unit and the coupling would not allow mechanical coupling.
Advantages
The Pressure Relief Valve can be mounted directly in the main inflow line so that all downstream pipe or hose lines where quick connect couplings or nipples are installed at the ends can be depressurized
Applications
- Moulding technology,
- building machinery
- industrial plants
Working Pressure - Maximum static working pressure with safety 250 BAR
Working Temperature - up to max. 90°C
