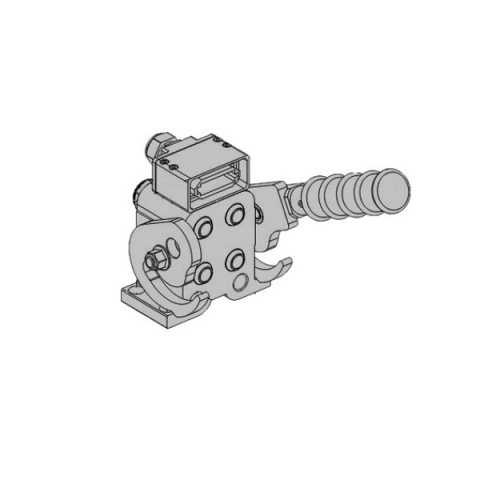

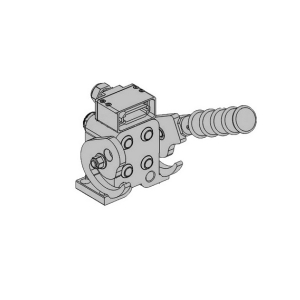

Parker TMFC3333QAAR C-Line Standard Coupling Plate with Protective Cap (4 x 3/8" Couplings), 14-pole Electrical Connection & Single Lever, fixed

Multiple connector system with locking lever and safety locking. Original TEMA plug-profile with spill-proof flat face design. Coupling body/plug fitted with high-flow valve system. Working Pressure Maximum pressure range: 350 bar (safety factor 4:1).

Attention: half the number of connections in the respective sizes.

Pressure Eliminator

All plugs are fitted with pressure eliminators to eliminate residual pressures up to maximum working pressure on the plug side (maximum 50 bar on the coupling side).

14-pole Electrical Connection

• Delivery exclusive of cables
• Protection category IP 67 (coupled)
• Screwed conductor connector: 0,5 - 1,5 mm²
• Pins and sleeves: copper coated
• Electrical junction box: Aluminium
• Traction relief: PA/NBR 9 -16 mm
• Max. voltage: 48 V
• Max. current: 10 A per core

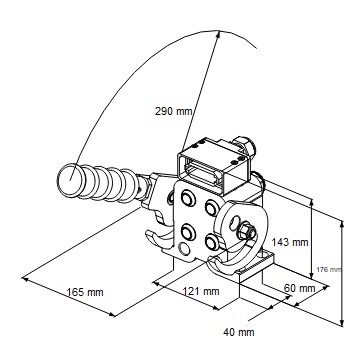

Coupling Plate Sizes
