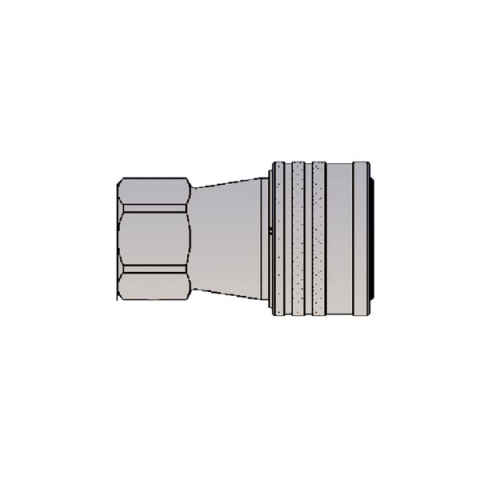

Parker TIA5511N TEMA Series TIA5500 1/2" Steel Coupler w/ Pressure Eliminator, Female NPT
- Specification
- Overview
- Customers Also Bought
- Your Recently Viewed Items
- Reviews
Overview
The series TIA5500 has been manufactured according to the regulations and dimensions of the standard specification ISO 7241-1 A Series and SMS 3275 for agricultural machinery. The parts of these series are inter-changeable with all couplings and plugs on the market that have been produced in accordance with this standard specification. With the patented Pressure Eliminator, it is possible to establish connections with built-up back pressure (up to 2900 psi). The Pressure Eliminator is available in the body of the coupling and in the plug. It is used wherever there is a risk of back pressure building up after the line has been separated. The Pressure Eliminator allows easy coupling even when pressure has been built up. For the optimum functioning of the eliminator it is necessary that the counterpart should be unpressurized. 1/2" size available with BSP-P threads.
Advantages
The TIA5500 series can be coupled with other makes complying with the same standard. This quick connect hydraulic coupling has a wide through-flow cross-section, yet it has a very small pressure drop.
Applications
- Agricultural machinery
- Building machinery
- Industrial plant.
