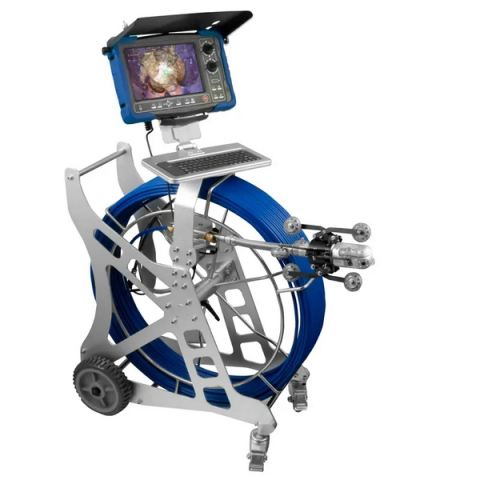

PCE Instruments PCE-PIC 120 Industrial Borescope with 120 m (393.7 ft.) Fiber Optic Push Cable

The tube camera PCE-PIC 120 is used to inspect channels and pipes. The tube camera has a 120 m / 393.7 ft fiber optic push cable. At the end of the tube camera, a motorized camera head is mounted. This camera head is able to be moved 360° horizontally and 180° vertically. Furthermore, the camera has a motorized focus, which makes it possible to realize field of view depths between 20 and 100 cm. At the head of the tube camera are 4 ultra-bright LEDs, which perfectly illuminate tubes and channels. The tube camera has an electronic meter counter, which makes it easier to pinpoint damaged areas or blockages in pipes.

For documentation, images and videos can be recorded and saved with the pipe channel camera. For a better view of the image, the tube camera can be connected via HDMI cable to an external monitor. The tube camera takes pictures in 1080P, so no detail is lost. To add commentary to the scan, the USB keyboard can be used. The tube camera is supplied on a robust, made of aluminum, trolley. Additionally included is a trolley and a roller guide for the camera, which are used to mount the camera head. As a result, pipes and ducts between 80 and 1200 mm / 3.1 ... 47.2 in can be driven.

Features:

• 120 m / 393.7 ft channel camera
• With cable cars
• Large display
• Text input in the picture and video possible
• Motorized camera
• Engine focus
• Locator function
• ø9.5 mm fiber optic cable

Includes:

• 1 x Industrial borescope PCE-PIC 120
• 1 x 120 m / 393.7 ft push cable on trolley
• 1 x Screen with keyboard
• 1 x Camera car
• 1 x Camera head
• 1 x Locator transmitter
• 1 x Camera connector with spring
• 1 x Roll center star
• 1 x Tool set
• 1 x Power supply
• 1 x User manual
