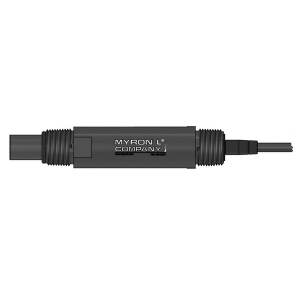

Myron L P94FPE-25 3/4" Heavy-Duty, Preamplified pH Sensor for 900 Series Multi-Parameter Monitor/Controllers w/ 25' Cable

The Myron L Company P94FPE pH sensors are designed to operate exclusively with the Myron L Company 900 Series Multi-Parameter Monitor /Controller. Each sensor has a built-in preamplifier that guarantees accurate measurements by eliminating ground-loop problems and reducing the effects of cable capacitance and impedance. They also include an integral PT1000 RTD to facilitate fast, accurate Temperature Compensation (TC). Sensor bodies are made from durable Ryton PPS (polyphenylene sulfide). Ryton combines excellent temperature tolerance with superb resistance to solvents and corrosive chemicals and has an inherent UL94 V-0 flammability rating without flame retardant additives. A double-ended, 3/4" NPT fitting makes these sensors easy to install in-line.

Double-Junction Reference design means these sensors can withstand poisoning in more demanding applications. The external junction is made from polyethylene, for harsher industrial environments where contamination of the junction is a concern. It works exceptionally well when measuring solutions with low ionic strength. The P94FPE sensor uses a flat tip design that stays cleaner and resists damage better than the classic tip design when exposed to abrasive and/or oily solutions. It is an excellent choice for more demanding applications, such as wastewater management, or when measuring the pH of non-aqueous solutions.Standard cable length is 10ft.(3.05m) terminated with 6, tinned leads (5 signal; 1 shield). A separate 5-pin terminal block is included.

Advantages:

• Superb Response Time.
• Double-Junction Reference Design.
• 0-14 pH Range
• Sensor area is completely sealed to eliminate leaks
• Double-ended NPT for simple in-line or submersion installations, independent of mounting orientation.

For more information, please see Data Sheet
