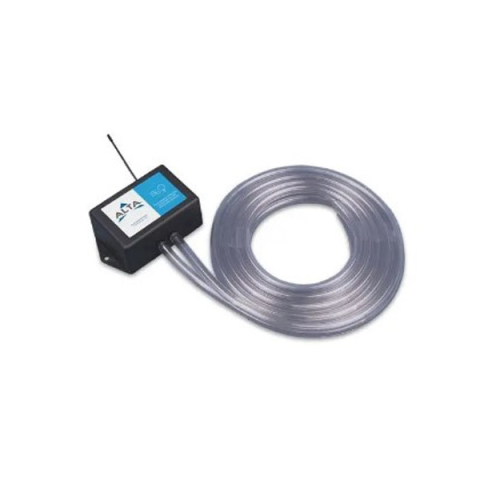

Monnit MNS2-9-W2-PS-DP-LPO ALTA Wireless Differential Air Pressure Sensor - Line Power Only (900 MHz)

Monnit MNS2-9-W2-PS-DP-LPO ALTA Wireless Differential Air Pressure Sensor - Line Power Only (900 MHz)
Click to zoom
  • Overview
  • Customers Also Bought
  • Your Recently Viewed Items
  • Reviews
  • Brand:Monnit
  • Part #:MNS2-9-W2-PS-DP-LPO
  • Model #:ALTA
Condition: new
Warranty
Out of stock. Ships directly from the manufacturer.
Request availability

Overview

ALTA® Wireless Differential Pressure Sensors measure the pressure difference between two input ports.

The ALTA Wireless Differential Pressure Sensor measures the pressure difference between two input ports based on a user-configurable time interval or Heartbeat. When viewing the sensor from the top, the right inlet port is the positive or high-side pressure input. When the pressure on this port is greater than the pressure on the left port, the sensor produces a positive pressure reading. When the pressure is greater on the left port the sensor produces a negative pressure reading. On each Heartbeat, the current measurement is sent to the gateway, making the data available in iMonnit or another approved data service.

Features

  • Measurement Range: -500 Pa to 500 Pa
  • Accuracy: ± 3% of reading ± 0.1 Pa
  • Calibrated
  • Temperature compensated
  • Configurable thresholds for critical condition monitoring
  • Power: Line Power w/Batt Backup

Applications

  • Building/Room Pressure
  • Air Flow
  • Variable Air Volume Filter Status
  • Duct Pressure
  • Clean Rooms
  • Hospitals
  • Fume Hoods
  • Computer Rooms

Includes:

  • Wireless Sensor
  • Mounting Hardware

For more information, please see Data Sheet
