Overview

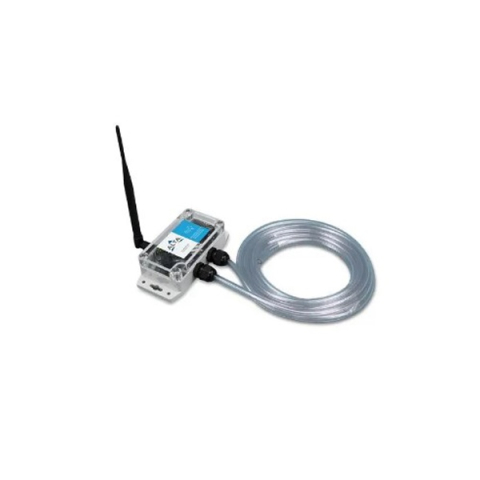

ALTA® Wireless Differential Pressure Sensors measure the pressure difference between two input ports.

The ALTA Wireless Differential Pressure Sensor measures the pressure difference between two input ports based on a user-configurable time interval or Heartbeat. When viewing the sensor from the top, the right inlet port is the positive or high-side pressure input. When the pressure on this port is greater than the pressure on the left port, the sensor produces a positive pressure reading. When the pressure is greater on the left port the sensor produces a negative pressure reading. On each Heartbeat, the current measurement is sent to the gateway, making the data available in iMonnit or another approved data service.

Features

  • Measurement Range: -500 Pa to 500 Pa
  • Accuracy: ± 3% of reading ± 0.1 Pa
  • Calibrated
  • Temperature compensated
  • Configurable thresholds for critical condition monitoring

Applications

  • Building/Room Pressure
  • Air Flow
  • Variable Air Volume Filter Status
  • Duct Pressure
  • Clean Rooms
  • Hospitals
  • Fume Hoods
  • Computer Rooms

Includes:

  • Wireless Sensor
  • Mounting Hardware
  • 3V Industrial Battery (Pre-Installed)
  • SMA Antenna

For more information, please see Data Sheet
