Connection 2 Size:	1/4"
Connection 1 Size:	8 mm
Connection 1 Type:	Push-to-Connect
Connection 3 Type:	Push-to-Connect
Connection 2 Type:	Male BSPT
Shape:	Run Tee
Configuration:	Tube to Pipe
Connection 3 Size:	8 mm
Industry:	Automotive, Industrial Manufacturing Equipment, Material Handling, Semiconductor, Food & Beverage, Healthcare & Life Sciences
Brand:	Parker
Division:	Fluid System Connectors Division
Hex Size:	See Part Hex Size Technical Specs.
Body Material:	Brass, Electroless Nickel-plated
Product Type:	Push-to-Connect Fittings
Technology:	Fluid & Gas Handling, Pneumatics
Region of Origin:	France
For Fluid Type:	Air, Oil, Steam, Water, Harsh Detergents, Food Fluids
Minimum Operating Temperature:	-13, -25
Maximum Operating Temperature:	302, 150
Maximum Operating Pressure:	290, 20
Vacuum Pressure Rating:	29
Tube Material:	Polyethylene, Polyurethane 90 to 95 Durometer Shore A, Nylon, Fluoropolymer
Application:	Food Processing, Medical Equipment, Printing, Welding, Misting
Specifications Met:	FDA, ISO 14743
Seal Material:	FKM
Materials of Construction:	Brass, Nickel-plated (Collet)
Silicone Free:	Yes

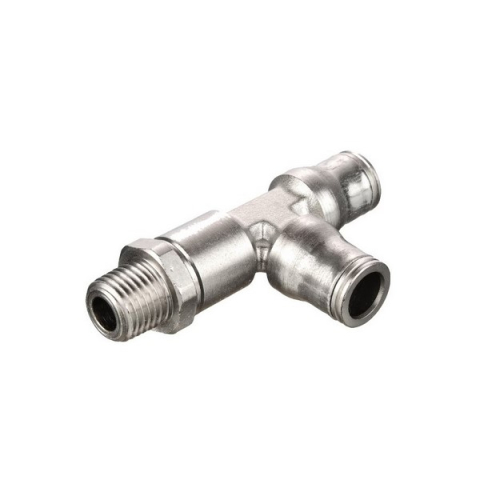

Legris 171PLM-8M-4R 8 mm Run Tee with 1/4" Male BSPT Threads

Overview
