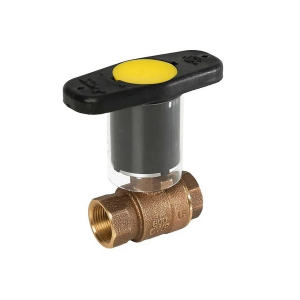

Jomar 200-409SSG-IH T-200CSSG-IH 2-1/2" Bronze Ball Valve, 2 Piece, Full Port, Threaded, Stainless Steel Trim, Insulated Handle

Jomar 200-409SSG-IH T-200CSSG-IH 2-1/2" Bronze Ball Valve, 2 Piece, Full Port, Threaded, Stainless Steel Trim, Insulated Handle
Click to zoom
  • Overview
  • Customers Also Bought
  • Your Recently Viewed Items
  • Reviews
  • Brand:Jomar
  • Part #:200-409SSG-IH
  • Model #:T-200CSSG-IH
Condition: new
Warranty

Contact Us

Overview

Features

  • Dezincification Resistant Lead Free Bronze
  • Blow-Out Proof Stem
  • Heavy Commercial Pattern
  • 100% Leak Tested
  • IAPMO Certified: NSF 61 & NSF 372 & NSF 14
  • 29 in-HG Vacuum Rating
  • Wetted Surfaces Contain Less than .25% Lead Content

Certifications/Approvals

  • IAPMO Certified
    • NSF/ANSI/CAN 61-8 2018
    • NSF/ANSI 372-2016
    • IAPMO/ANSI Z1157-2014
    • ASME A112.4.14/CSA B125.14:22
    • NSF/ANSI 14-2016
  • Threads According to ANSI B1.20.1
  • Meets MSS SP-110

Pressure/Temperature Rating

  • 100 PSIG at 300°F (up to 2")
  • 600 PSIG at Ambient (up to 2")

Valve Seat Rating

600 CWP - 150 WSP

Valve Size & Materials
