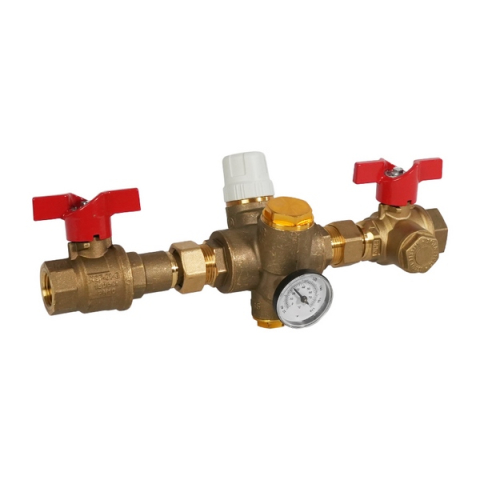

Jomar 180-104MFG-B-I 3/4" Thermostatic Balancing Valve, Threaded, 150 CWP, w/ Thermometer, Check Valve, Dual Isolation & Integrated Strainer

3/4" Thermostatic Balancing Valve, Threaded, 150 CWP, w/ Thermometer, Check Valve, Dual Isolation & Integrated Strainer

FEATURES

• Variable Temperature Set Point with Protective Cap
• Modulates Flow to Maintain Constant Temperature in the Recirculation Loop
• No Balancing Equipment Required
• Heat Treated DZR Alloy
• 100% Made in Italy
• Drywell with Temperature Gauge comes Standard
• 1/2" NPT Temperature Port (Factory Plugged)
• Equipped with Isolation Ball Valve and Filter Ball®
• Union Connections on the Ball Valves
• Integrated Check Valve in Downstream Isolation Valve

CERTIFICATIONS/APPROVALS

• NSF/ANSI/CAN 61
• NSF/ANSI/CAN 372
• Conforms to ANSI B1.20.1

PRESSURE/TEMPERATURE RATING

• Max Working Pressure: 232 psi
• Max Differential Pressure: 14.5 psi
• Max Working Pressure: 194°F
• Temperature Setting Range: 95°F - 140°F
• Cvmin: 0.18
• Cvmax: 1.90
• Cvdesign: 0.51 - 0.56

Material Specifications and Dimensions
