Jomar 180-104MFG-A-I 3/4" Thermostatic Balancing Valve, Threaded, 150 CWP, Actuated Thermal Disinfection, w/ Thermometer, Check Valve

Jomar 180-104MFG-A-I 3/4" Thermostatic Balancing Valve, Threaded, 150 CWP, Actuated Thermal Disinfection, w/ Thermometer, Check Valve
Click to zoom
  • Overview
  • Customers Also Bought
  • Your Recently Viewed Items
  • Reviews
  • Brand:Jomar
  • Part #:180-104MFG-A-I
  • Model #:TB-150MFG
Condition: new
Warranty

Overview

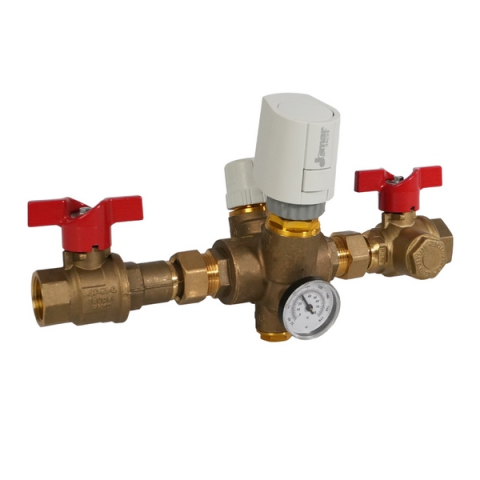

3/4" Thermostatic Balancing Valve, Threaded, 150 CWP, Actuated Thermal Disinfection, w/ Thermometer, Check Valve

FEATURES

  • Variable Temperature Set Point with Protective Cap
  • Modulates Flow to Maintain Constant Temperature in the Recirculation Loop
  • No Balancing Equipment Required
  • Heat Treated DZR Alloy
  • 100% Made in Italy
  • Drywell with Temperature Gauge Comes Standard
  • 1/2" NPT Temperature Port (Factory Plugged)
  • Actuated Disinfection Axial Valve for Use with BMS
  • Equipped with Filter Ball® and Isolation Ball Valves
  • Union Connections on the Ball Valves
  • Integrated Check Valve in Downstream Isolation Valve

CERTIFICATIONS/APPROVALS

  • NSF/ANSI/CAN 61
  • NSF/ANSI/CAN 372
  • Conforms to ANSI B1.20.1

PRESSURE/TEMPERATURE RATING

  • Max Working Pressure: 232 psi
  • Max Differential Pressure: 14.5 psi
  • Max Working Temperature: 194°F
  • Temperature Setting Range: 95°F - 140°F
  • Cvmin: 0.18
  • Cvmax: 1.90
  • Cvdesign: 0.51 - 0.56
  • Cvdisinf: 1.16

Material Specifications and Dimensions

WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
