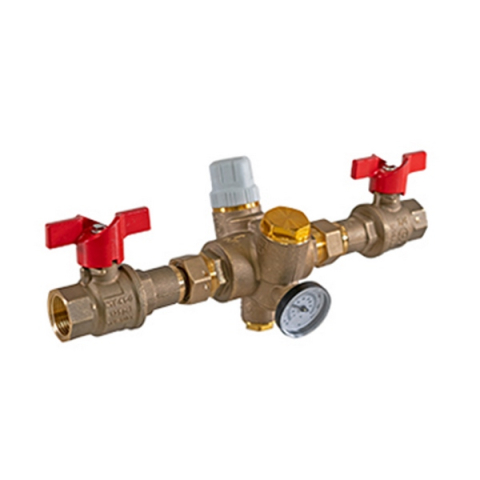

Jomar 180-103MG-B-I 1/2" Thermostatic Balancing Valve, Threaded Connection, 150 CWP, w/ Thermometer, Check Valve & Dual Isolation

Jomar 180-103MG-B-I 1/2" Thermostatic Balancing Valve, Threaded Connection, 150 CWP, w/ Thermometer, Check Valve & Dual Isolation
Click to zoom
  • Overview
  • Customers Also Bought
  • Your Recently Viewed Items
  • Reviews
  • Brand:Jomar
  • Part #:180-103MG-B-I
  • Model #:TB-120MG
Condition: new
Warranty

Overview

1/2" Thermostatic Balancing Valve, Threaded Connection, 150 CWP, w/ Thermometer, Check Valve & Dual Isolation

Features

  • Variable temperature set point with protective cap
  • Modulates flow to maintain constant temperature in the recirculation loop
  • No balancing equipment required
  • Heat treated DZR alloy
  • 100% Made in Italy
  • Drywell with temperature gauge comes standard
  • 1/2" NPT temperature port (factory plugged)
  • Thermal disinfection bypass (160°F)
  • Equipped with dual isolation ball valves
  • Union connections on the ball valves
  • Integrated check valve in downstream isolation valve

Approvals

  • NSF 61
  • NSF 372
  • Conforms to ANSI B1.20.1

Temperature and Pressure

  • Max Working Pressure: 232 psi
  • Max Differential Pressure: 14.5 psi
  • Max Working Temperature: 194°F
  • Temperature Setting Range: 95°F - 140°F
  • Cvmin: 0.26
  • Cvmax: 2.06
  • Cvdesign: 0.55 - 0.58
  • Cvdisinf: 1.21

Material Specifications and Dimensions

WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
