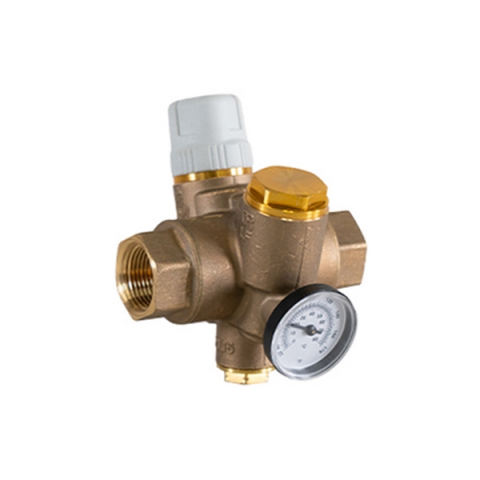

Jomar 180-103G-B 1/2" Lead Free Thermostatic Balancing Valve, Threaded Connection, 150 CWP, with Thermometer

Jomar 180-103G-B 1/2" Lead Free Thermostatic Balancing Valve, Threaded Connection, 150 CWP, with Thermometer
Click to zoom
  • Overview
  • Customers Also Bought
  • Your Recently Viewed Items
  • Reviews
  • Brand:Jomar
  • Part #:180-103G-B
  • Model #:TB-120G
Condition: new
Warranty

Overview

1/2" Lead Free Thermostatic Balancing Valve, Threaded Connection, 150 CWP, with Thermometer

Features

  • Variable temperature set point with protective cap
  • Modulates flow to maintain constant temperature in the recirculation loop
  • No balancing equipment required
  • Heat treated DZR alloy
  • 100% Made in Italy
  • Drywell with temperature gauge comes standard
  • Available with check valve
  • 1/2" NPT temperature port (factory plugged)

Approvals

  • NSF 61
  • NSF 372
  • Conforms to ANSI B1.20.1

Temperature and Pressure

  • Max Working Pressure: 232 psi
  • Max Differential Pressure: 14.5 psi
  • Max Working Temperature: 194°F
  • Temperature Setting Range: 95°F - 140°F
  • Cvmin: 0.23
  • Cvmax: 2.10
  • Cvdesign: 0.53 - 0.59

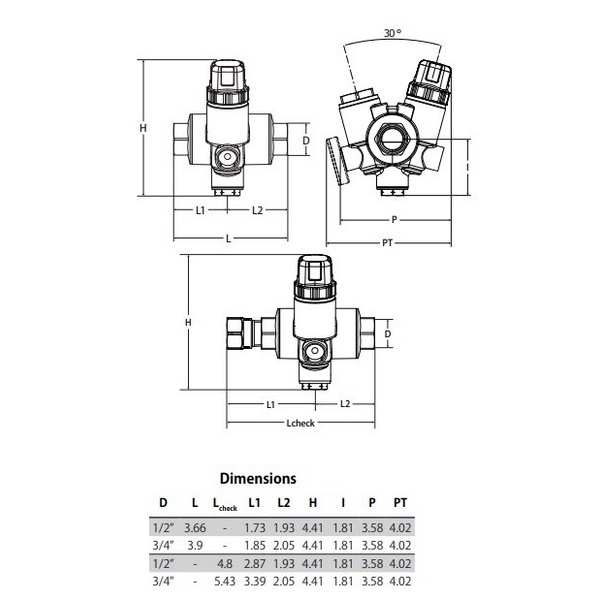

Material Specifications and Dimensions

WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
