Overview

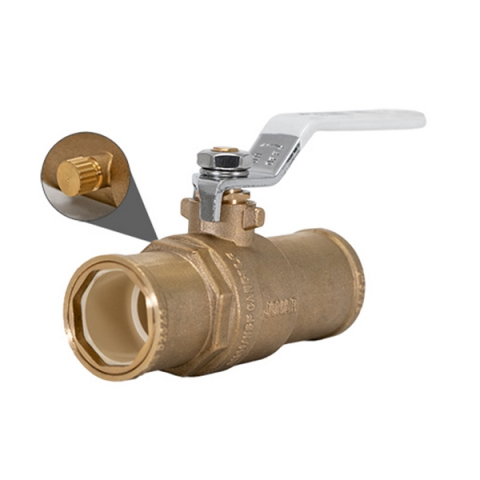

1" Lead Free Brass Ball, CPVC, 2 Piece, Full Port, Solvent Connection with Drain, 150 WOG
FEATURES
- Dezincification Resistant Brass Alloy
- CTS Connection
- For Hot/Cold Water Systems
- Drain Tap 1/8" Orifice
- Quarter-Turn Operation
- CPVC End Connection Inserts
CERTIFICATIONS/APPROVALS
- IAPMO Certified - NSF 61 & NSF 372 & NSF 14 Certified
- Conforms to ASTM D2846
PRESSURE/TEMPERATURE RATING
- 150 PSI at 73°F Continuous
- Temp range: 33°F to 180°F

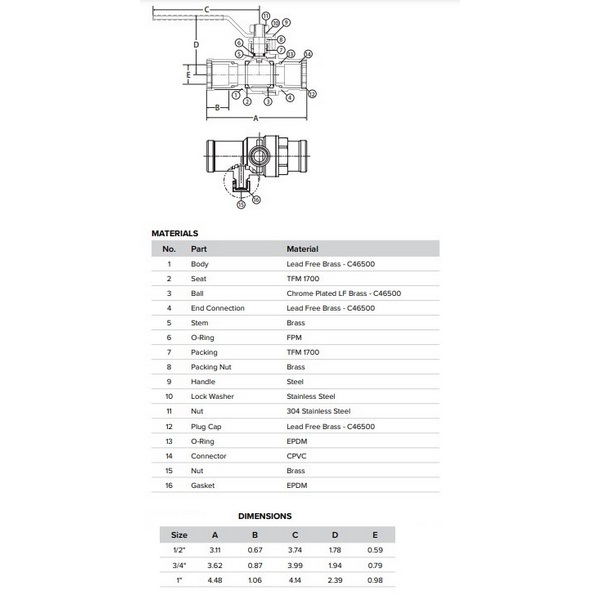

Material Specifications and Dimensions
