Overview

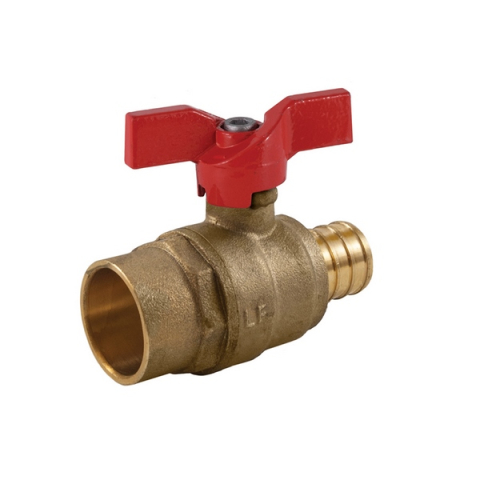

1" Lead Free Brass Ball Valve, 2 Piece, Solder x Crimp Pex Connection, 400 WOG
Features:
- Dezincification Resistant Brass Alloy
- Gland Follower and Single O-Ring Stem Design
- Blow-Out Proof Stem
- 100% Leak Tested
- IAPMO Certified - NSF 61, NSF 372 & NSF 14 Certified
- ASTM F1807
- Wetted Surfaces Contain Less than .25% Content
Certifications/Approvals:
ASTM F1807
IAPMO Certified:
- NSF 61-8
- NSF 372
- Uniform Plumbing Code (cUPC)
- IAPMO/ANSI Z1157-2014
- NSF/ANSI 14-2014
ASME/ANSI B16.18
Pressure/Temperature Rating:
- Body rated to 400 WOG
- Crimp connection rated to 100 WOG up to 180°F

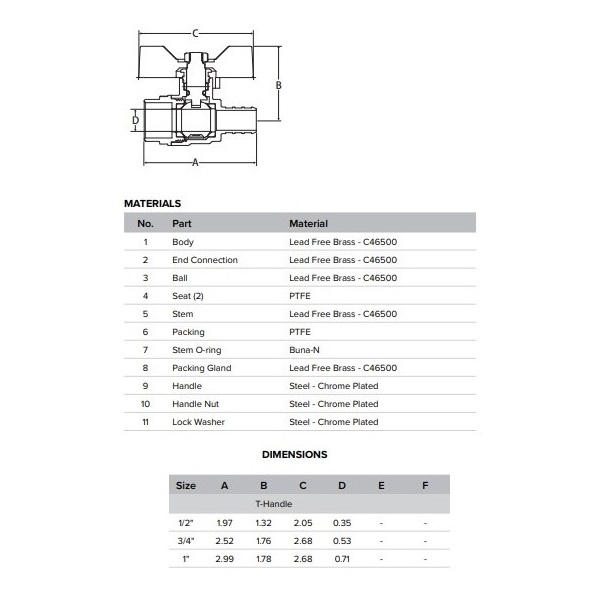

Material Specifications and Dimensions
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
