Jomar 105-404 3/4" Bronze Y-Pattern Swing Check Valve, Solder Connection, 300 WOG, Class 150
Click to zoom
  • Brand:Jomar
  • Part #:105-404
  • Model #:S-511
Factory Warranty
Warranty
Condition
Condition: new
Safe Checkout
Fully secured
Money back Guaranty
100% satisfaction

Overview

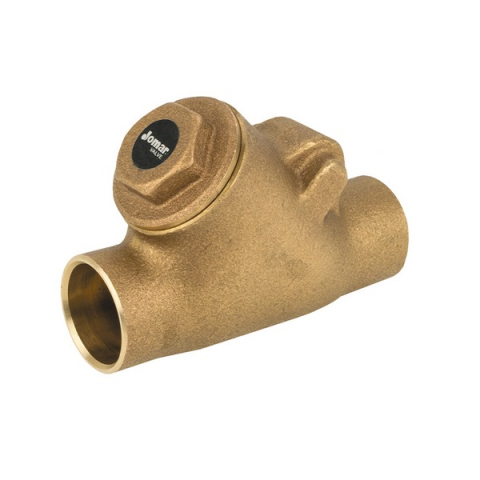

3/4" Bronze Y-Pattern Swing Check Valve

Features:

  • Constructed of 85-5-5-5 bronze
  • Can be installed in the vertical or horizontal position

Approvals:

  • MSS SP-80
  • ASME/ANSI B16.18

Valve Seat Rating:

  • 300 WOG - 150 WSP

Recommended Install: 5 pipe diameter minimum downstream from pump discharge or changes in direction to avoid flow turbulence. Flow straighteners may be required in extreme cases.

Note: On pump discharge, the preferred check valves are: inline spring assisted checks.

Jomar Y-pattern Check Valves may be installed in both horizontal and vertical lines with upward flow or in an intermediate position. They will operate satisfactory in a declining plane (no more than 15°).

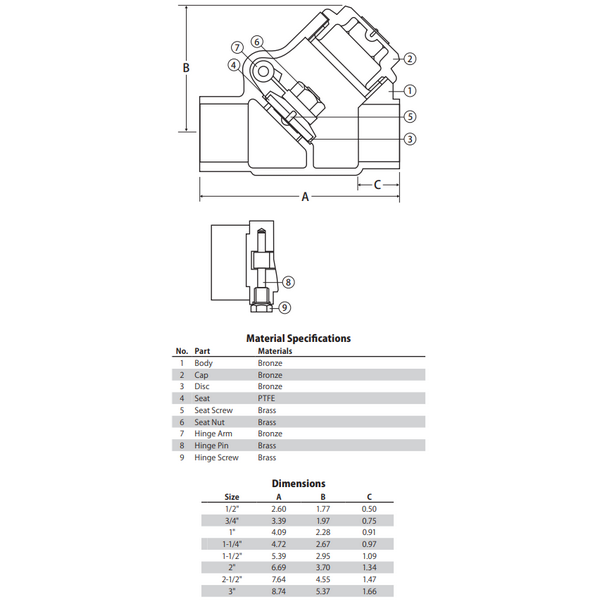

Material Specifications and Dimensions

WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer, and lead, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
