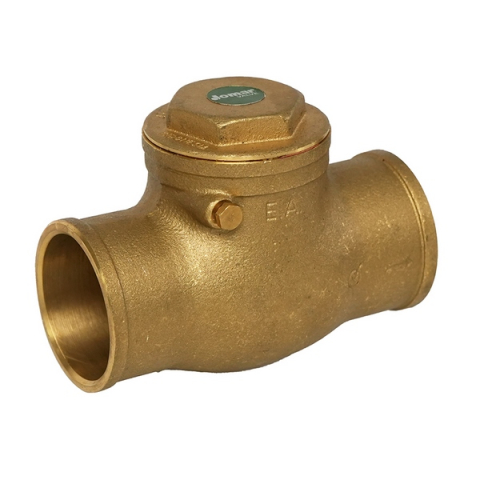

Jomar 105-210G 3" Horizontal Swing Check Valve, Solder Connection, 200 WOG, Class 125

Jomar 105-210G 3" Horizontal Swing Check Valve, Solder Connection, 200 WOG, Class 125
Click to zoom
  • Overview
  • Customers Also Bought
  • Your Recently Viewed Items
  • Reviews
  • Brand:Jomar
  • Part #:105-210G
  • Model #:S-501G
Condition: new
Warranty

Overview

3" Horizontal Swing Check Valve

Features:

  • Residential and commercial applications
  • Wetted surfaces contain less than 0.25% lead content

Approvals:

  • Truesdail Certified NSF/ANSI/CAN 61 & 372
  • ASME/ANSI B16.18

Pressure/Temperature Rating:

  • 200 WOG
  • Temperature range: -10°F to 180°F

Install 5 pipe diameters minimum downstream from pump discharge or changes in direction to avoid flow turbulence. Flow straighteners may be required in extreme cases.

Note: On pump discharge, the preferred check valves are: inline, spring assisted, center-guided, lift checks.

Jomar Check Valves may be installed in both horizontal and vertical lines with upward flow or in an intermediate position. They will operate satisfactory in a declining plane (no more than 15°).

Warning: Do Not Use For Reciprocating Air Compressor Service

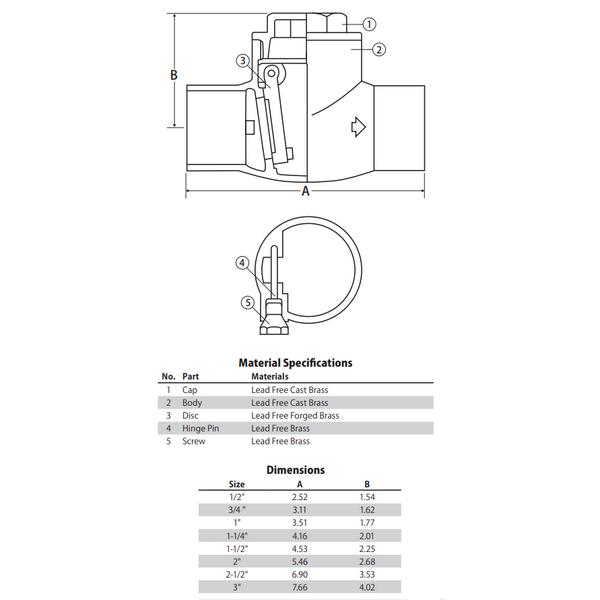

Material Specifications and Dimensions

WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer, and lead, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
