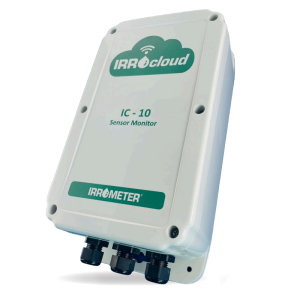

Irrometer IC-10 IRROcloud Sensor Monitor (without sensors) for Reading Watermark 200SS Sensors

IRROcloud Sensor Monitor (without sensors) reads WATERMARKS. Includes 1 free year of IRROcloud service

The IRROcloud® IC-10 Sensor Monitor is a battery-powered, cellular-enabled sensor reading solution. Designed for easy outdoor installation, the IC-10 can read up to ten sensors including soil moisture, air and soil temperature, irrigation events, and tipping bucket rain gauges. Data is recorded hourly and transmitted every other hour to the IRROcloud® web application accessible from any connected device. Data displayed on IRROcloud® allows for easy interpretation of status and trends to help growers enhance irrigation water use efficiency.

IC-10 Features:

• Pre-configured sensor ports
• No sensor calibration
• No installation height requirement
• No solar panel required
• Direct cloud connection, no additional hardware
• Data available on any web device
• Internal antenna

IRROcloud® Features:

• Data available in real-time from any mobile device or computer
• Quick View Dash: Device and sensor status with adjustable thresholds
• Graphing Suite: Interactive graphing function for detailed analysis
• Mapping: Allows for quick visualization of device location and status
• Data Control: Administrative tools to share access with multiple users
• REST API available for integration with other systems Frost alerting option

Specifications:

• Weight: IC-10: 2.10 lb / 0.95 kg
• Dimensions: H x W x D: 10.25 x 5.25 x 3.30 inch / 260.35 x 133.35 x 83.82 mm
• Power: Four C cell alkaline batteries, 2+ years life
• Frost Alarm (Optional): 34°F (1.1 °C), via Text Message
• Mounting: Integral molded flanges with multiple hole options
• Compliance: FCC (USA) & IC (Canada)
• Cellular: LTE-M (CatM1) & NB-loT
  • Up to 23dBm transmit power
  • Receive sensitivity dBm: LTE-M -105, NB-IOT -113
  • Bands 1,2,3,4,5,8,12,13,18,19,20,25,26,28,29
