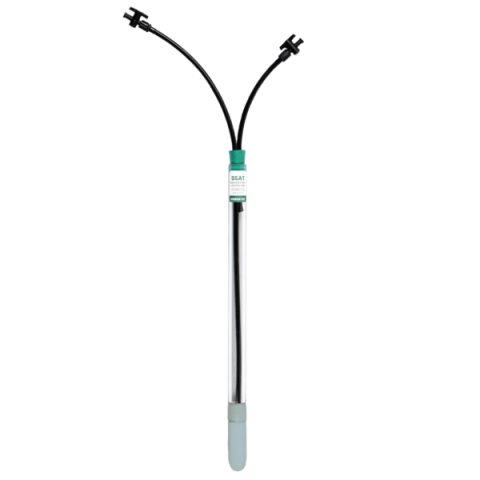

Irrometer A48C-LT-DBL 48" (120 cm) Double Line Low Tension Soil Solution Access Tube

IRROMETER Soil Solution Access Tube - SSAT

SSAT (Soil Solution Access Tubes), or Suction Lysimeters, were developed to easily extract soil water samples for testing. They provide the user with an accurate method of determining salinity or plant nutrient levels. Because the sample is collected at root zone depth, it reflects the true impact fertilization has on the plant material. Understanding soil water conditions helps the user make informed fertigation scheduling decisions resulting in improved yield and reduced fertilizer, water, labor and energy costs.

Features:

• Easy to install and use
• Standard ceramic tip (white) for most soil types
• Low Tension tip (blue) for sandy soils and growing media
• Optional Double Suction line for longer tubes
• Collects soil water sample at the root zone

Specifications:

• Water Tube Materials:
  • Butyrate body, ceramic tip, neoprene stopper, vinyl tubing suction line, PVDF stopcock valve
• Dimensions:
  • Height: 48" (120 cm)
  • Diameter: .875 in. (22 mm)
  • Weight:12 in. (30 cm) is .254 lb. (.115 kg) with increases of .252 lb. (.114 kg) per foot
• Ceramic Tip:
  • Blue tip - used for very coarse soils and non-soil growing media

Includes:

• tube,
• suction line,
• stopper and line clamp
