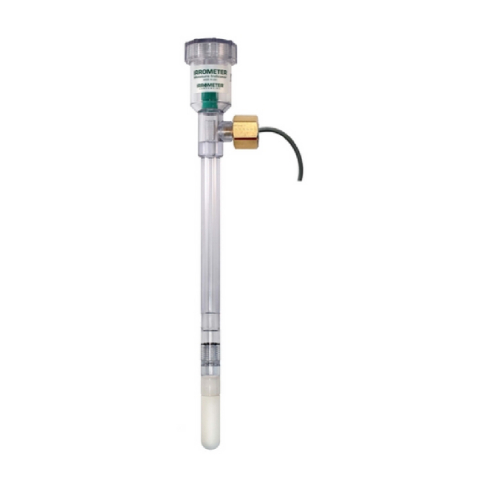

Irrometer 248-RSU-V Soil Moisture Sensor (Tensiometer), 48" (120 cm), Voltage Output

The "V" Series Voltage Option is designed for use on IRROMETER instruments to indicate soil moisture electronically. The output can be read by many devices including the IRROMETER IC-10 and 900M.

Features:

• Low-cost voltage transducer
• Standard 3-wire voltage output
• Temperature compensated
• Available in 0-94 cb (kPa) for all models
• Designed for limited cable lengths

Specifications:

• OUTPUT: 0.5 to 4.5 VDC, 2.5 mA
• ACCURACY: ± 2% of Full Scale
• RESOLUTION: 0.3 kPa
• WEIGHT: 2.16 oz. (61.22 g)
• DIMENSIONS: 1 in. high x 1 in. wide x 1.88 in. deep (25mm high x 25mm wide x 30 mm deep)
• CABLE: 10' (305 cm) 3 conductor AWG 22
• SUPPLY VOLTAGE: 5 VDC (± 0 .5 VDC)
• SUPPLY CURRENT: 10 mA
• RANGE: 0-94 cb (kPa)
• OPERATING TEMPERATURE: 32° to 150° F (0° to 66° C)
• CONNECTION: 1/4-inch brass male NPT
• COMPLIANCE: CE, RoHS
• Body Length: 48'' (120 cm)
