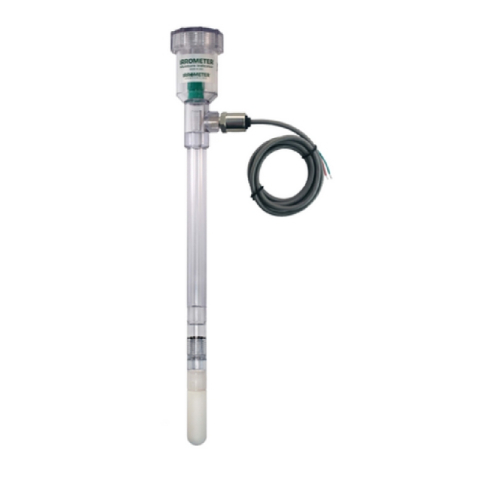

Irrometer 248-RSU-C Soil Moisture Sensor (Tensiometer), 48" (120 cm), Current Output

"C" Series Remote Sensing Units are designed for use on IRROMETER instruments to indicate soil moisture levels by converting the reading to a 4-20 mA current signal. The output can be read by a data logger, PLC, or other reading device.

Features:

• Weatherproof 304 stainless steel body
• Temperature compensated
• 4-20mA industry standard
• Designed for long cable lengths

Specifications:

• OUTPUT: 4 to 20 mA current
• ACCURACY: ± 0.5% of Full Scale
• WEIGHT: 0.24 lbs. (109 g)
• DIMENSIONS: Body Length 1.75-inch (44 mm) HEX 0.94 inch (24 mm)
• CABLE: 36" (90 cm) 2 conductor AWG 20
• SUPPLY VOLTAGE: 9 to 36 VDC
• SUPPLY CURRENT: 20 mA
• RANGE: 0-100 cb (kPa)
• OPERATING TEMPERATURE: 32° to 150° F (0° to 66° C)
• CONNECTION: 1/4-inch brass male NPT
• PROTECTION CATEGORY: IP65
• COMPLIANCE: CE, RoHS
• Body Length: 48'' (120 cm)
