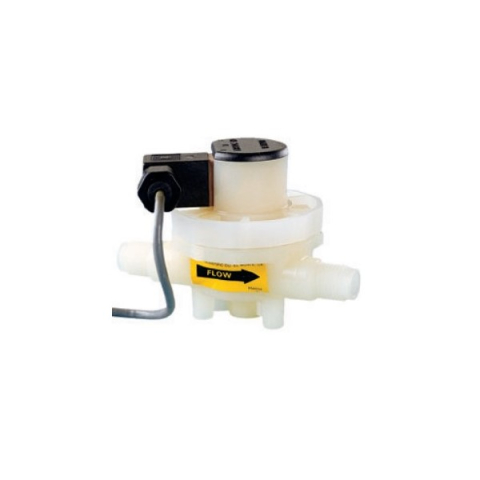

GF Piping Systems 3-2507.100-2V Mini Flow Rotor Sensor, 2 mm Insert

The Signet 2507 Mini Flow Rotor Sensor contains a free-running rotor that is driven by the fl uid flow. Within the given measurement range, the rotational speed of the rotor is proportional to the fl uid flow rate. Magnets built into the rotor trigger an electronic switch in the top of the sensor creating a square-wave output. Both opaque and transparent fl uids can be measured with kinematic viscosities between 0.2 to 20.0 centistokes.

Features:

• Operating range 100 to 12,000 ml/m (0.026 to 3.2 U.S. gpm)
• Detachable signal connector for easy servicing
• Simple installation with a G 1/4 in. (1/4 in. NPT) threaded connection
• Standard 7.6 m (25 ft) cable
• PVDF construction
• Compact assembly

Applications:

• Fluid Dispensing
• Laboratory and Clinical Wet Benches
• Chemical Dosing
• Batch Processes
