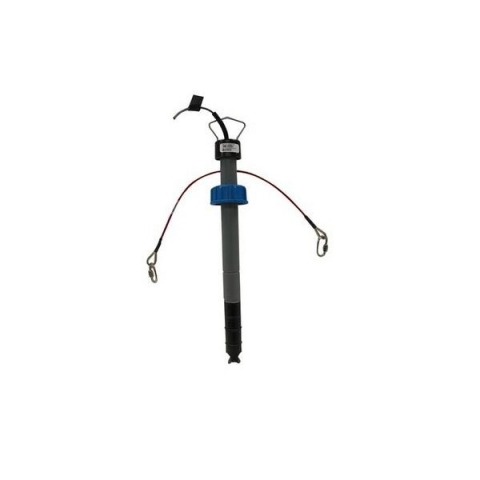

GF Piping Systems 3-2536-P3 Wet-Tap Mount Paddlewheel Flow Sensor, PP, Titanium, Black PVDF; 0.5 to 4"

Simple to install with time-honored reliable performance, Signet 2536 Rotor-X Paddlewheel Flow Sensors are highly repeatable, rugged sensors that off er exceptional value with little or no maintenance.

When choosing this style of sensor, the instrument can be mounted nearby on a pipe or wall or in a remote location up to 305 m (1000 ft) by connecting the sensor through a standard 3-8050-1 universal junction box. Standard cable length is 7.6 m (25 ft). This style of sensor uses the 3519 Wet-Tap valve only (see individual product page for more information).

Features:

• Operating range 0.1 to 6 m/s (0.3 to 20 ft/s)
• Wide turndown ratio of 66:1
• Open-collector output
• Highly repeatable output
• Simple, economical design
• High resolution and noise immunity
• Chemically resistant materials

Applications:

• Pure Water Production
• Filtration Systems
• Chemical Production
• Liquid Delivery Systems
• Pump Protection
• Scrubber/Gas Stacks
• Gravity Feed Lines
• Not suitable for gas
• Sodium Hypochlorite transfer/ injection/batching (3-2536-U0)
