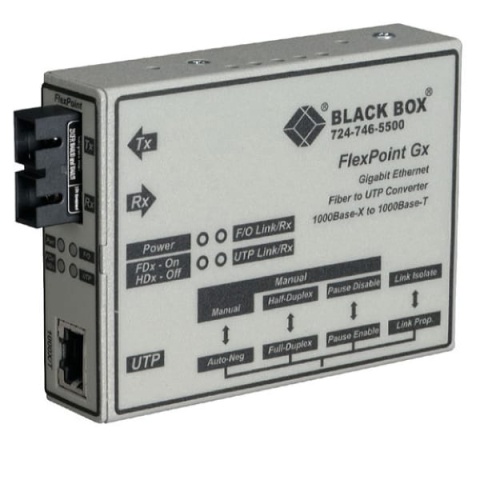

Black Box LMC1003A-R3 FlexPoint Gigabit Ethernet (1000-Mbps) Media Converter - 1000-Mbps Copper to 1000-Mbps Multimode Fiber, 850nm, 0.3km, SC
Click to zoom
  • Brand:Black Box
  • Part #:LMC1003A-R3
  • Model #:FlexPoint
  • Regular Price: $674.11
Only 5 left in stock - order soon! Inventory as of date 04/28/2025.
Safe Checkout
Fully secured
Money back Guaranty
100% satisfaction

Overview


Extend LAN reach with fiber media converters.

FlexPoint™ Converters from Black Box are versatile and cost-effective standalone converters that you can upgrade to a chassis-based system. They provide the ultimate in flexibility and reliability for your expanding multimedia LAN. The incredible variety and versatility of this system make it ideal for networks that are subject to constant upgrades and changes. Tailor the system to your requirements. Get the converters you need now and use them individually. Then, when your LAN grows, mount your converters on the wall, in the FlexPoint 5-Position Rackmounting Kit, or in the FlexPoint Power Chassis. The chassis holds 14 converters and single or dual AC or DC power supplies.

Features:

  • Bring fiber to the desktop more conveniently and at a lower cost than installing fiber NICs
  • Compact size
  • Powered by a universal AC power supply or the optional rackmountable chassis.
  • Auto MDI/MDI-X means you never need to worry about what kind of cable to use.
  • DIP switches enable you to configure port settings.
  • Sends Gigabit Ethernet up to 220 meters (721.7 ft.) on multimode fiber.
  • Manual switches enable you to override port settings.
  • Diagnostic LEDs report power availability and status of the attached devices.
  • Hardware available for mounting the converter to a wall or a DIN rail.

This product works with:

  • FlexPoint Power Chassis (LMC200A, etc.)
  • FlexPoint 5-Position Rackmounting Kit (LMC205)
  • FlexPoint Wallmounting Hardware (LMC206-WALL)
  • FlexPoint FlexPoint Media Converter DIN Rail Kit (LMC207-DRM)
  • FlexPoint DC Power Converter (LMC204A)
  • Gb ETH Mode CONV 1000Mb MM/1000Mb SM 850/1300nm 0.3km/5km (2) SC
  • FST ETH MED CONV 10/100-Mbps COP to 100-Mbps MM FBR 1300nm 2km LC
  • FST ETH MED CONV 10/100-Mbps COP to 100-Mbps MM FBR 1300nm 2km ST
  • FST ETH MED CONV 10/100-Mbps COP to 100-Mbps MM FBR 1300nm 2km SC
  • FST ETH MED CONV 10/100Mbps COP to 100Mbps SM FBR 1310nm 28km LC
  • FST ETH MED CONV 10/100Mbps COP to 100Mbps SM FBR 1310nm 28km ST
  • FST ETH MED CONV 10/100Mbps COP to 100Mbps SM FBR 1310nm 58km SC
  • Media Converter Chassis - 14-Slot, Rackmount, Single 115-230VAC
  • Media Converter Chassis - 14-Slot Rackmount Dual AC Power Supply
  • Spare Power Supply - International
