Overview

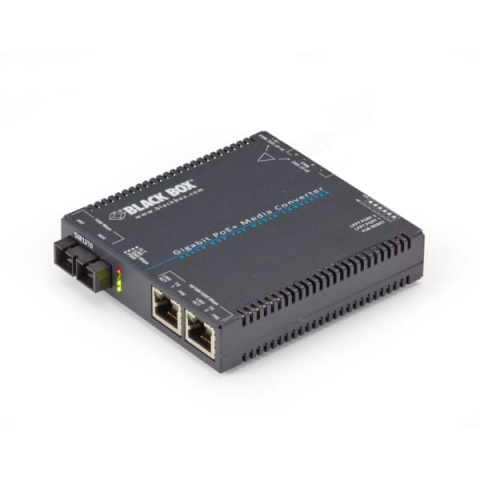

LGC5200 Series Gigabit Ethernet (1000-Mbps) PoE+ Media Converter - 10/100/1000-Mbps Copper to 100/1000-Mbps Singlemode Fiber, 1310nm, 15km, SC
Connect with fiber and provide power to remote PoE devices.
This tough media converter is the ideal way to extend your network over fiber and also power a PoE device. Use it to link to faraway PoE devices such as IP security cameras, wireless access points, and VoIP phones.
Features:
- Features two 10-/100-/1000-Mbps copper ports and one 1000Mbps fiber port.
- Both UTP ports are autosensing with Auto MDI/MDI-X; one UTP port supports 802.3at PoE+.
- Acts as power sourcing equipment (PSE) on the copper side to power PoE devices.
- Features an extended temperature range when used with DC terminal-block power
The media converter features two autosensing 10/100/1000 UTP ports plus one single-mode fiber port that can extend a network connection up to 15 kilometers (9.3 mi.). Both UTP ports support 802.3at Power over Ethernet, enabling it to power a PoE+ PD device; the other is a straightforward Ethernet port, which can be used for network expansion.
The Gigabit PoE+ Media Converter can be powered three ways: from an AC power supply (LGC5210-PS, included), via the DC power jack, or via the DC terminal block. When used with DC power to the terminal block, the converter supports an extended operating temperature range of +32 to +158° F (0 to +70° C).
The converter requires only one power source to power both the converter and a PoE+ device; you can position the PoE+ device up to 100 meters (328 feet) away from the converter, enabling flexible placement of wireless APs and security cameras. A pair of input terminals and output terminals enables you to cascade DC power in a DIN rail installation (optional DIN Rail Clip (LXC-DR) is sold separately).
This product works with:
- Media Converter (LGC5212A)
- Spare Power Supply - LGC5200A Series Media Converters
- Wallmount Kit - LGC5200A series Media Converters
- Spare Power Supply - LGC5210A Series Media Converters
- DIN Rail Clip - Media Converters
