Overview

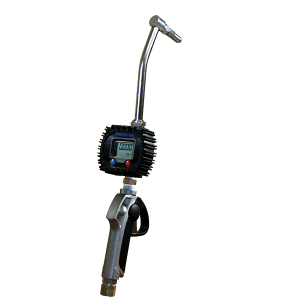

Digital Metered Control Handle for Gear Oil
Equipped with trigger guard, rigid extension and 90° manual non-drip tip. Meter body designed with field replaceable "plug and play" electronics and isolated fluid chamber. 4.0 GPM flow.
EXCLUSIVE DESIGN This meter is built exclusively for American Lubrication Equipment Corporation incorporating numerous design ideas provided by their design team
FIELD REPAIRABLE This design enables the user to replace the circuit board while the meter is installed under pressure
SUPERIOR DESIGN Fluid is completely separated from the electronic head. The entire electronics head/puck is available as a replacement part
PROGRAMMABLE All Pro Series digital meters are programmable to Pints, Quarts, Liters and Gallons
BATTERIES New AAA battery design lasts up to 3 times longer
SHOCK-RESISTANT Rugged shock-resistant design stands up to the harshest environments. Meter covers have a molded-in soft rubber shock-guard for added protection
MODULAR ASSEMBLY Swivel, control valve, meter and tip assembly are separate units which simplifies repair
FILTER All Pro Series digital control valves have built-in filters for added protection
WORKING PRESSURE:
- 0 PSI (manual tip) or 35 PSI (automatic tip) minimum
- 1,000 PSI maximum
COMPATIBILITY:
- Automatic Transmission Fluid
- Gear Oil
- Hydraulic Oil
- Motor Oil
- Synthetic Oil
ACCURACY:
- +/- 0.5% WORKING FLOW RATE:
- 2.5 GPM (standard tips)
- 4 GPM (high flow tips)
- THREADS:
- Swivel: 1/2"-14 NPT (F). NOTE: Sealant required
- Meter: 1/2"-14 NPT (F x F). NOTE: Sealant required. Do not over torque
Includes
- trigger guard,
- rigid extension
- 90° manual non-drip tip
