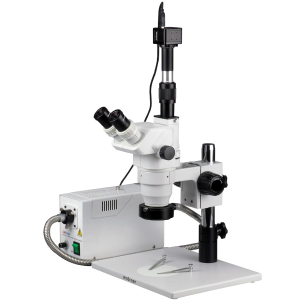

AmScope ZM-1TW3-FOR-5M Inspection Trinocular Stereo Microscope 2X-225X Magnification on Pillar Stand w/ 5MP Camera and Fiber Optic Ring Light

AmScope ZM-1TW3-FOR-5M Inspection Trinocular Stereo Microscope 2X-225X Magnification on Pillar Stand w/ 5MP Camera and Fiber Optic Ring Light
Click to zoom
  • Overview
  • Customers Also Bought
  • Your Recently Viewed Items
  • Reviews
  • Brand:AmScope
  • Part #:ZM-1TW3-FOR-5M
  • Model #:ZM-1 Series
Condition: new
Warranty

Overview


AmScope ZM-1 Series Inspection Trinocular Stereo Microscope 2X-225X Magnification on Pillar Stand with 5MP Digital Camera and Fiber Optic Ring Light

  • 2X-225X extended zoom magnification using high-resolution Greenough stereoscopic objective lenses with 10X and 25X eyepieces, and 0.3X and 2X Barlow lenses.
  • High-resolution ZM series optics provide improved sharpness with lower distortion
  • The pillar-style stand provides fundamental support and functionality with a large base for stability and an ample working surface
  • Dual diopters can be adjusted to maintain consistent focus throughout the magnification range, greatly improving productivity.
  • The stereo optics provide upright images with clear depth-of-field and a wide view for hands-on applications.
  • A trinocular photo-port provides a dedicated mount for adding a camera.
  • This microscope is ideal for laboratories, repair shops, and engravers.
  • Monitor and capture photos and videos with the included 5MP USB 2.0 camera. Professional microscopy software for Windows, Mac, and Linux provide tools for image processing, measuring, and more.
  • A 150W halogen illuminator with 35" heavy-duty fiber-optic ring-light provides the smoothest overhead lighting possible. Active cooling and auto-shutoff avoids overheating in strenuous environments.

The ZM-1T brings together high-resolution stereo optics and a modern design. The ZM series shows improvements in resolution, contrast, and distortion compared to our staple SM series. This trinocular model has an additional port for mounting a camera, so you can record video or photos without replacing an eyepiece. The table-stand provides a solid and fundamental support system that won't take up a lot of space. This model is especially popular in laboratories and workshops due to it ease-of-use and reliability.

Optics

The advanced optical system in the ZM series microscope produces higher resolutions throughout its zoom range, with stunning contrast and color accuracy. The 0.67X-4.5X objective lenses offer excellent focus-depth and a large working-distance, with symmetrical zoom knobs to easily move through magnifications. 10X and 25X eyepieces are included, as well as 0.3X and 2X Barlow lenses to provide an expanded magnification range from 2X-225X, with high-eyepoint optics to accommodate glasses or goggles.

Ocular Adjustment

Dual ocular diopters can be adjusted to maintain consistent focus, greatly improving productivity. Sliding interpupillary adjusters ensure that each user can properly align the eyepieces for comfortable viewing.

Trinocular Port

The switched trinocular photo-port provides a dedicated mount for a camera. When the photo-port is switched open, all light from the left objective is diverted to the port to provide maximum brightness for the camera to guarantee the best quality images.

Pillar Stand with Large Base

The pillar-style stand provides fundamental support and functionality for use with this stereo microscope. The large base creates a stable foundation and work surface, with a reversible black/white centered plate which can offer contrast to light or dark specimens. The focusing block is mounted to a column, allowing the block to rotate and slide for flexible positioning. The block's large focusing knobs provide excellent grip for easy control, and are tension-adjustable.

Digital Imaging

Monitor and capture photos and videos with the included 5.0MP USB2.0 camera. The C-mount camera is specially designed for use with microscopes, allowing you to watch live images, and to record photos or videos on your computer. This ability to view microscopic images on your computer reduces eye-strain, and allows groups of people to view images at the same time. A 0.5X reduction lens is included to capture more of the microscope's field-of-view. Our professional software for Windows provides a wide assortment of capture and photo-editing functions including color correction, time-lapse capture, image stitching, and a full complement of measuring tools. A lite version of our software is available for Mac and Linux with essential functionality for capturing photos and videos.

Additional Items

This package includes a powerful 150W illuminator with a fiber-optic ring-light. The incandescent light-source projects ultra-bright, full-spectrum light which is channeled through the 35" fiber-optic light-guide which provides the smoothest ring of encompassing illumination. The flexible, heavy-duty metal-sheathed guide will hold up to heavy use in your workshop, factory, or lab without worry of crimping or breaking. The light-source is equipped with an active cooling system and an auto-shutoff circuit to avoid overheating in strenuous environments.

Specifications

Microscope Head
Head TypeTrinocular, 45° incline, 360° rotatable
Optical SystemGreenough stereoscopic
Interpupillary AdjustmentSliding, 54-76mm
Ocular-port Diameter30mm
Dioptric AdjustmentBoth oculars, ±5dp
Eyepieces10X, 25X
Photo Portheight-adjustable 23mm tube
Objective Lenses0.67X-4.5X zoom, NA 0.0715 @ 4.5X
Objective Resolution214.5 lp/mm @ 4.5X
Native Field-of-View4.9mm-28.6mm
Native Working Distance100mm
Auxiliary Lens Mount48mm thread
Auxiliary (Barlow) Lenses Included48mm thread: 0.3X, 287mm working distance
2X, 30mm working distance
Stand
Stand TypePillar stand with large base
Stand DimensionsBase: 12.6" x 11" x 0.79" (320mm x 280mm x 20mm)
Pillar: 12" (305mm) height, 1.25" (32mm) diameter
Focusing-block Focus Range50mm

Camera Specifications
Sensor TypeCMOS
Sensor Optical Format1/2.5"
Active Pixels5M (2592 x 1944)
Pixel Size2.2μm x 2.2μm
Active Sensor Area5.7mm x 4.28mm
Shutterelectronic rolling shutter
Sensitivity0.53V/Lux-sec
Spectral Response380-650nm with IR-cut filter
Capture Resolution and Maximum Framerate5fps @ 2592x1944
18fps @ 1280x960
60fps @ 640x480
ConnectivityUSB 2.0
Lens-mountC-mount
Compensating Lens0.5X
Power5VDC over USB

Software

OS RequirementsWindows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+
Hardware RequirementsIntel Core2 2.8GHz or comparable processor, 4GB RAM
Features
Windows Version
Live video preview
Captures still images and video
Time-lapse capture
Exposure and white-balance controls
Dark-field correction
Digital binning
Image processing
Measurement tools, including lines, arcs, polygons
Segmentation and counting tools
Image-stitching, extended depth-of-field, HDR
Fluorescence color-mapping
Mac/Linux Versions
Live video preview
Captures still images and video
Exposure control
Color adjustment
Measurement tools, including lines, arcs, polygons

Packing List:

  • One trinocular stereo microscope head
  • One photo port
  • One pair 10X eyepieces
  • One pair 25X eyepieces
  • One 0.3X Barlow lens
  • One 2X Barlow lens
  • One pair eye-guards
  • One stand base
  • One stand pillar
  • One focusing block
  • One pair stage clips
  • One black/white stage plate
  • One hex wrench
  • Screws and washers
  • One C-mount USB camera
  • One 0.5X reduction lens
  • Two sizing adapters
  • One USB Type B to USB type A cable
  • One software CD
  • One halogen light source
  • One power cord
  • Two spare fuses
  • One fiber-optic ring-light attachment
  • One ring-light mounting adapter
