Overview
AmScope UTP Series Outlet 5.0MP Continuous Parfocal Zoom USB Handheld Digital Microscope 10X-64X Magnification on Track-stand
Features:
- 5MP USB digital microscope with continuous optical zoom
- 10X to 64X effective magnification
- Integrated variable-intensity LED ring-light
- Solid metal construction
- Advanced editing, processing & measuring software for Windows XP/Vista/7/8/10, lite versions available for Mac/Linux

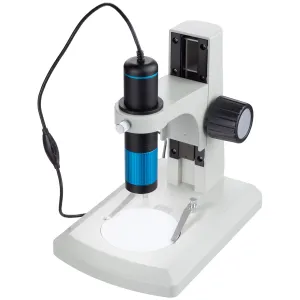

The UTP5100A is a 5MP USB digital microscope with an effective zoom-magnification range of 10-64X. With a working distance of 55mm, and a field-of-view ranging from 23mm to 4mm, this microscope is suited for applications such as soldering and coin-inspection. With an integrated 5MP digital imaging sensor and LED ring-light, all you need is a computer to be up and running. The solid metal construction, smooth mechanical zoom-ring, and stable stand make this a truly professional turnkey inspection system.
With software available for Windows, Mac, and Linux, the MU series is a multi-platform imaging solution. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. With the ability to calibrate scales at multiple magnifications, the software can be used for multi-level inspection. Independent preview and capture resolutions allow you to view high-speed video while simultaneously capturing high-definition images. For Mac and Linux, there is a lite version of the software which can capture video and still images, and includes limited processing features.
Specifications:
Software Specifications:
- offers Stitching, EDF, video recording and measurement functions
- conducts measurements for lengths, angles, arcs, areas and etc.
- gives your computer screens the same field of view as your microscope's eyepiece
- saves still images in BMP, TIFF, JPG, PICT, PTL or other formats
- live video and still image capture can be set in different resolutions simultaneously
More features: add layers, watermarks, mosaics, tiles; adjust color balance, exposure, saturation, contrast, orientation; change resolution, histogram, granulation, diffusion; transform images via edge detection, digital image warping; conducts measurements for single, parallel or perpendicular lines and rectangular, elliptical and irregular areas; adds notes, measurements, text, arrows, labels, and etc. using customizable text with different sizes and colors; conducts measurements in microns, millimeters, centimeters, inches, feet, and etc. under any magnification powers with desired tolerances
Contents:
