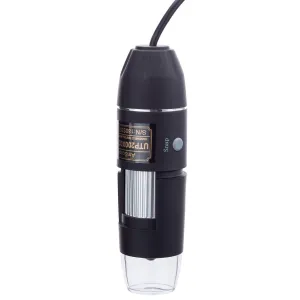

AmScope UTP200X020 UTP Series 2.0MP Zoom USB Handheld Digital Microscope 200X Magnification w/ 8-LED Light and Windows, Mac Software
- Overview
- Customers Also Bought
- Your Recently Viewed Items
- Reviews
Overview
AmScope UTP Series 2.0MP Zoom USB Handheld Digital Microscope 200X Magnification with 8-LED Light and Windows & Mac Software
Features:
- This 2MP USB digital microscope streams real-time video to your computer. Designed for beginners and hobbyists, the microscope can be used for science experiments, repair jobs, and much more.
- UVC compatibility for Windows and Mac computers. Software is provided for Windows with advanced editing and measurement tools. Mac software is available for basic photo and video capture.
- Eight built-in LEDs provide light to ensure clear images.
- Optional stands provide hands-free operation, which is especially useful for soldering and mechanical repairs, as well as time-lapse imaging.
The UTP200X020 USB digital microscope provides a high-quality, low-cost solution for digital-imaging. The small size and ergonomic shape lend themselves to handheld use. Paired with a stand, the microscope becomes an incredibly easy-to-use, hands-free imaging-solution for repair-work, time-lapse observation, and much more. A simple USB connection is all it takes, and the provided software allows you to view real-time video at 200X magnification. You can record video files or still images, or just watch the live feed while you explore the microscopic world. Eight built-in LEDs provide light to ensure clear images.
The applications are only limited by the imagination. You can use the microscope to get a closer look at everyday items, or plan an experiment such as bacteria-culturing. The digital microscope can work from varying distances, and provides a safe way to view things. Used with a stand, it offers hands-free magnification for watch-repair or soldering.
The UTP200X020 uses a universal UVC driver, so it is compatible with most desktop computers including Windows, Mac, and Linux operating systems. The provided software for Windows includes advanced tools for time-lapse, image-stitching, measurements, and much more. The lite version of the software for Mac and Linux provides basic functionality for capturing photos and videos, along with color-correction and measurement tools. For Android users, an OTG micro-USB or USB-C adapter (not provided) can be used to connect the microscope to OTG-compatible devices, such as smartphones and tablets. The microscope draws its power from the USB connection, so you can turn a compatible Android device into a fully-portable digital-microscopy system!
Specifications
| Sensor Type | Sensor Optical Format | Transfer Method |
|---|---|---|
| CMOS (color) | 1/3.2" | Rolling Shutter |
| Pixels | Pixel Size | Aspect Ratio |
| 2.0M | 2.8μm x 2.8μm | 4:3, 16:9 |
| Spectral Range (IR Cut Filter) | Frame Rate(s) (Maximum) | Exposure Time |
| 380nm - 650nm | 34fps @ 640x480 30fps @ 1280x720 30fps @ 1920x1080 | 0.5ms to 30ms |
| Connectivity | Power | Compatibility |
| USB 2.0 | 5V over USB | Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX, Linux |
Software
| OS Requirements | Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+ | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Hardware Requirements | Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB port | |||||||||||||||
| Features |
|
