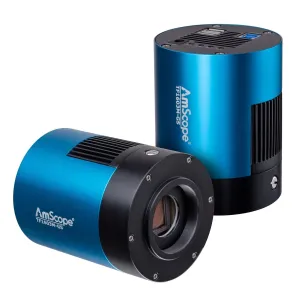

AmScope TF1603M-GS 16.0MP USB 3.0 Temperature-regulated Monochrome CMOS T-Mount Telescope Camera

AmScope TF1603M-GS 16.0MP USB 3.0 Temperature-regulated Monochrome CMOS T-Mount Telescope Camera
Click to zoom
  • Overview
  • Customers Also Bought
  • Your Recently Viewed Items
  • Reviews
  • Brand:AmScope
  • Part #:TF1603M-GS
  • Model #:TF Series
Condition: new
Warranty
Out Of Stock

Overview


AmScope TF Series 16.0MP USB 3.0 Temperature-regulated Monochrome CMOS T-Mount Telescope Camera

  • A 16MP temperature-regulated monochrome camera for astro-imaging
  • High sensitivity and low read-noise provide high quality images for deep space imaging
  • The thermo-electric cooling system can reduce the temperature up to 45 degrees Celsius below ambient for up to 1-hour exposures.

The TF1603M is designed to bring a new level of performance to astro-imaging. Deep space imaging is no problem for this camera, with its large, ultra-sensitive sensor and 2-stage thermo-electric cooling. With a high well-capacity and low read-noise, the Panasonic 4/3" sensor soaks up light. The active cooling further controls read-noise with the ability to keep the sensor up to 45°C below ambient while capturing long exposures up to one hour.

Sensor

SensorSensor TypeShutterFull Well Capacity
Panasonic MN34230CMOSRolling Shutter20000 e-
Sensor SizePixelsPixel Size
4/3" format (17.6mm x 13.3mm)16M3.8μm x 3.8μm

Camera

Frame Rate(s)ConnectivityLens-mount
22.5fps @ 4648x3506
43fps @ 2304x1750
48fps @ 1536x1168
USB 3.0M42x0.75
CoolingPowerCompatibility
2-stage Thermoelectric12V 3AWindows (32/64 bit) 8.1/10/11, Mac OSX, Linux

Contents:

  • One USB3.0 Temperature-regulated Digital Camera
  • One heavy-duty carrying case
  • One power adapter
  • One 6' (1.8m) USB Cable
  • One CD with software and instructions
