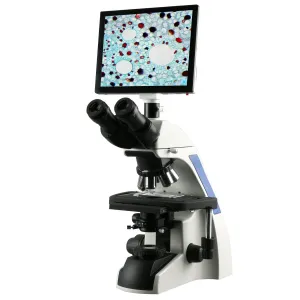

AmScope T720QC-TP 40X-2500X Plan Infinity Laboratory Compound Microscope w/ 9.7" Touchscreen Imaging System

AmScope T720QC-TP 40X-2500X Plan Infinity Laboratory Compound Microscope w/ 9.7" Touchscreen Imaging System
Click to zoom
  • Overview
  • Customers Also Bought
  • Your Recently Viewed Items
  • Reviews
Condition: new
Warranty
Out Of Stock

Overview


40X-2500X Plan Infinity Laboratory Compound Microscope with 9.7" Touchscreen Imaging System

Features:

  • 40X to 2500X magnification range for studying a range of specimens including hair follicles, cells, and bacteria. 10X and 25X eyepieces provide 6 unique magnification settings.
  • Includes a 9.7" touchscreen tablet with 5MP integrated camera for monitoring and capturing images. Equipped with microSD, USB and wi-fi for storing and sharing files, and micro-HDMI to use larger displays including televisions and monitors.
  • The infinity-corrected optical system reduces distortion and improves color accuracy.
  • The quintuple lens turret is equipped with five plan-achromatic objective lenses producing high-contrast images with edge-to-edge sharpness.
  • The Koehler illumination system provides centered, evenly-distributed lighting with a field aperture for maximum contrast and definition.
  • Rackless mechanical stage provides extremely smooth movement over a wide range.

The T720Q-TP is a feature-rich microscope with a turnkey 9.7" touchscreen tablet-based imaging system. Designed for professional biological applications and advanced education, the microscope offers high-end features. Its infinity-corrected optical system ensures reliable, low-distortion magnification, with plan-achromatic corrections for accurate colors, excellent field flatness and edge-to-edge sharpness. A quintuple lens-turret is used, providing five levels of magnification. The Koehler-design LED illumination system provides bright, evenly-distributed light for maximum contrast and definition. This model is a popular choice for veterinarians and university laboratories.

The trinocular head accommodates simultaneous viewing through both eyepieces and the top-mounted photo port which accommodates a wide range of imaging systems. The binocular viewing tubes use Siedentopf adjustment to easily fit any user. Focusable eyepieces are used to compensate for users with astigmatism or asymmetrical sight.

The quintuple objective turret provides instant access to 5 magnification levels to easily focus in on minute details from 40X to 1000X. Additional 25X eyepieces expand the maximum magnification to 2500X with 8 unique levels. This covers magnifications needed for studying hair follicles, cells, soil, and bacteria. The turret's reversed orientation provides more working room above the stage. These high-quality lenses are achromatically corrected to improve resolution and color accuracy, with planatic flat-field correction to provide edge-to-edge sharpness.

The large 2-layer mechanical stage provides smooth and precise movement for examination of specimen slides. The rackless design provides a wide range of movement without the obtrusive, exposed teeth of conventional mechanical stages. The stage's low-position controls are conveniently placed near the coaxial focus knobs for a streamlined workflow. Examining specimen slides is intuitive and precise for users at any skill level.

Built on Koehler illumination principals, the sub-stage lighting provides evenly-distributed light for optimal contrast. The LED light-source ensures cool, energy-efficient illumination with low heat for live specimens. The bright light-source is daylight-balanced to produce natural colors for imaging. The Abbe light condenser has a high 1.25 numerical aperture for oil-immersion, and an iris diaphragm to optimize contrast and depth-of-field. The condenser holder uses rack-and-pinion height adjustment for precision control, and is centerable for proper alignment. The illuminator's field lens provides an iris diaphragm to control light-spread, optimizing contrast and definition in specimen features.

This package includes an all-in-one imaging system which combines the technologies of a 5MP microscope camera with an Android tablet to provide a feature-rich experience like no other. The high-resolution 9.7" screen brings your microscopic subjects to life in vivid color, with 90° tilt and 360° swivel to set the screen to a comfortable angle while standing or sitting. Touchscreen navigation allows you to capture photos and videos with ease using the built-in software, as well as performing measurement functions. With all of the functionality you would expect from a cutting-edge tablet, the possibilities are endless.

For added flexibility, the tablet is equipped with a micro-HDMI output to expand your display to a larger format when needed, such as a television or monitor. When it comes to file storage, you will be spoiled for choices: you can use the internal storage, save to a microSD card or USB device, or transfer files over you wi-fi network. Wi-fi connectivity not only offers networking possibilities for sharing images, but for performing online tasks while you work.

Specifications

Optical SystemInfinite-conjugate
HeadTrinocular, 30° incline, 360° rotatable
Interpupillary AdjustmentSiedentopf compensation-free gemel, 55-75mm
Ocular Diameter30mm
Ocular Dioptersnone
Eyepieces10X, 25X
Photo Portfixed 23mm tube
Objective LensesInfinity-corrected
Objective Parfocal Distance45mm
Objective Mounting ThreadRMS 20.32mm
Objective TurretReverse quintuple, ball-bearing movement
Focusing SystemCoaxial coarse and fine focus, tension control
Focus Range24mm
Division of Fine Focus0.001mm
Stage DesignRackless double-layer with caliper
Stage Dimensions216mm x 150mm
X-Y Translation Range75mm x 50mm
Transmitted IlluminationLED
CondenserNA1.25 Abbe condenser with iris diaphragm
Sub-stage Condenser-holderrack and pinion
Power90-240VAC 50/60Hz wide-band

Objective Lenses

MagnificationCorrectionsNAImmersion MediumCover-glass Thickness
4Xplan-achromatic0.10-0.17mm
10Xplan-achromatic0.25-0.17mm
20Xplan-achromatic0.40-0.17mm
40Xplan-achromatic0.65-0.17mm
100Xplan-achromatic1.25oil0.17mm

Tablet Specifications

OSAndroid 4.1.1
CPU1.8GHz
Memory2GB (DDR3)
Internal Storage2GB
External StorageMicroSD (TF) 32GB max, USB
Screen Size (diagonal)9.7"
Display Resolution2048 x 1536
Display Mount360° rotation, 90° tilt
Sensor TypeCMOS
Active Pixels5M (2592 x 1944)
Shutterelectronic rolling shutter
Photo Capture Resolution2592 x 1944
2048 x 1536
1600 x 1200
Video Capture Resolution and Maximum Framerate15fps @ 2048x1536
ConnectivityMicro HDMI
USB 2.0
Wi-Fi
Lens-mountC-mount
Power110-220VAC

Packing List:

  • One trinocular head
  • One microscope body
  • Five objective lenses: 4X, 10X, 20X, 40X, 100X
  • One pair 10X eyepieces
  • One pair 25X eyepieces
  • One tablet with integrated camera
  • One AC adapter (US and Canada standard)
  • One power cord (US and Canada standard)
  • One dust cover
