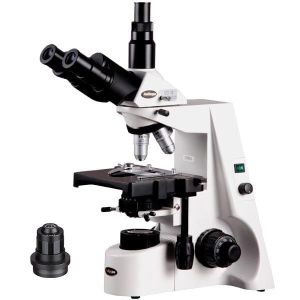

AmScope T690B-PL-DK T690 Infinity Plan Darkfield Trinocular Compound Microscope 40X-2000X Magnification w/ 20W Halogen Kohler Illumination






- Overview
- Customers Also Bought
- Your Recently Viewed Items
- Reviews
Overview
AmScope T690 Infinity Plan Darkfield Trinocular Compound Microscope 40X-2000X Magnification with 20W Halogen Kohler Illumination
- 40x-2000x infinity Plan optics offers crystal clear sharp images
- Eight extreme widefield darkfield magnification powers and eight brightfield magnification settings
- Backward nosepiece provides spacious operation space
- Kohler halogen illumination with base condenser & iris
- The trinocular port uses the third port for camera capabilities
This is a brand new professional trinocular darkfield compound microscope with superior extreme widefield infinity Plan Achromatic optical system, offering crisp clear images. It comes with a 30 degree inclined 360 degree swiveling trinocular Siedentopf head, extreme widefield eyepieces, infinity Plan objectives, coaxial coarse & fine focusing, 3-D mechanical stage, and Kohler halogen illumination with wide band power supply (from 85V to 230V). The backward nosepiece configuration allows spacious room for convenient operation and comfortable observation. The trinocular port uses the third port for camera capabilities giving you the remaining two ports to view your specimen. This microscope provides eight darkfield magnification powers and eight levels of brightfield magnification (40X, 80X, 100X, 200X, 400X, 800X, 1000X and 2000X). It is a superb instrument for clinic offices, veterinary labs and research laboratories.
Features:
- An Affordable Infinity Plan Achromatic Optical Microscopy System with Kohler Illumination!
- Backward Nosepiece Allowing Spacious Room for Comfortable Observation
- Large Mechanical Stage with Two-microslide Specimen Clamp
- Humanized Configuration Design Providing Comfortable Operation
- Front Open Light house Framework for Easy Access to Light Bulb
- Fully Coated Optical System with High Resolution
- Crystal Clear Sharp Images
- Precise Mechanical Control System
- Backward Nosepiece Design for Spacious Operation Room
- Kohler Illumination System with Field Diaphragm for Lighting Control
- 30 Degree Inclined, 360 Degree Swiveling, Trinocular Siedentopf Head
- Eight Darkfield Magnification Levels: 40X, 80X, 100X, 200X, 400X, 800X, 1000X and 2000X
- Eight Brightfield Magnification Settings: 40X, 80X, 100X, 200X, 400X, 800X, 1000X and 2000X
- Intensity-Variable Transmitted Halogen Lighting System
- Abbe Condenser with Iris Diaphragm and Swing-Out Filter Holder
- Rack and Pinion Adjustment for Condenser
- Low Position Coaxial Stage Movement Control Knobs
- Dual Side Coaxial Coarse and Fine Focusing Control
- Adjustable Interpupillary Distance
- Adjustable Diopter on Ocular
- Durable Cast Alloy Frame Stand with Stain Resistant Enamel Finish
- Four Infinity Plan Objectives: 4X, 10X, 40X, 100X
- Two Sets of Wide Field Eyepieces: Wide Field 10X (22mm Field of View) and 20X
- Large Double Layer Mechanical Stage with Stain Resistant Finish
- Upward Stage Stopper to Protect Objectives and Slides
- Compatible with a Wide Range of Optional Accessories, Including Phase Contrast and Darkfield Condensers
- Manufactured under ISO 9001 Quality Control Standards
- Excellent Five (5) Year Factory Warranty
Specifications:
- Optical System: infinity corrected
- Nosepiece: backward, ball bearing quadruple
- Head: Siedentopf trinocular head, 30-degree inclined
- Eyepiece: WH10X/22mm and WH20X
- Objectives: infinity Plan objective 4X, 10X, 40X (spring), 100X (spring, oil)
- Focusing: low position coaxial focus system
- Interpupillary Adjustment Mechanisms: 2-3/16" - 3-0" (55 - 75mm)
- Mechanical Stage: 7.1"x5.9" (180mm x 150mm)
- Stage Traveling Range: 3"x 2" (75x50mm)
- Division of Fine Focusing: 0.0000787" (0.002mm)
- Darkfield Condenser: N.A. 0.90, dry, swing with iris diaphragm filter
- Brightfield Condenser: N.A. 1.25, swing with iris diaphragm filter
- Illumination: Kohler, halogen 12V/20W
- Power Supply: 85V-230V wide voltage, CE certified
Packing List:
- One Trinocular Siedentopf Head
- One Microscope Body Frame with Base and Kohler Illumination System
- Four Infinity Plan Objectives: 4X, 10X, 40X and 100X
- Two Pairs of Extreme Widefield Eyepieces: WH10X and WH20X
- One Dry Darkfield Condenser (N.A. 0.90)
- One Brightfield Condenser (N.A. 1.25)
- One Power Cord
- Three Color Filters
- One Dust Cover
- One Spare Halogen Bulb
- One Spare Fuse
- Immersion Oil
- User's Manual Download
- Shipping Weight: 25 lbs
