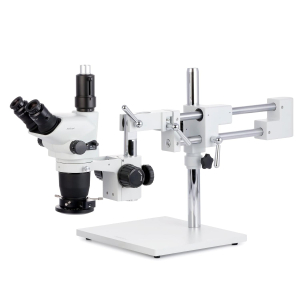

AmScope SZN-4TW3-LE1975 2X-225X Trinocular Boom Stand Stereo Zoom Microscope w/ Euromex 4.5W Polarizing 16 LED Ring Light

AmScope SZN-4TW3-LE1975 2X-225X Trinocular Boom Stand Stereo Zoom Microscope w/ Euromex 4.5W Polarizing 16 LED Ring Light
Click to zoom
  • Overview
  • Customers Also Bought
  • Your Recently Viewed Items
  • Reviews
  • Brand:AmScope
  • Part #:SZN-4TW3-LE1975
Condition: new
Warranty

Overview


2X-225X Trinocular Boom Stand Stereo Zoom Microscope with Euromex 4.5W Polarizing 16 LED Ring Light

Features:

  • 2X-225X extended zoom magnification using high-resolution Greenough stereoscopic objective lenses with 10X and 25X eyepieces, and 0.3X and 2X Barlow lenses.
  • High-resolution SZN series optics provide improved sharpness with lower distortion.
  • A highly-versatile stereo microscope on a heavy-duty, multi-pivot boom-stand which allows the microscope to easily swing into place when needed, and away when not.
  • Dual diopters can be adjusted to maintain consistent focus throughout the magnification range, greatly improving productivity.
  • The stereo optics provide upright images with clear depth-of-field and a wide view for hands-on applications.
  • A trinocular photo-port provides a dedicated mount for adding a camera.
  • This microscope is ideal for laboratories, repair shops, and engravers.
  • The included polarized ring light minimizes unwanted glare and reflections from shiny or reflective surfaces, such as glass or metal.

The NEW SZN-4T matches high-resolution optics with a brawny boom stand for demanding biological and industrial applications. The SZN series shows improvements in resolution, contrast, and distortion compared to our staple SM & ZM series. This model is especially popular in the manufacturing, QC, repair, and engraving industries thanks to its ease of use and reliability. This trinocular model has an additional port for mounting a camera, so you can record videos or photos without replacing an eyepiece. With its wide zoom range and double-arm boom stand, this model will become an indispensable instrument in any workshop or lab.

Enhanced features include the ability to set a minimum magnification level by locking the zoom knob, adjustable zoom click intensity, and a shutter pin to switch back and forth between binocular and trinocular modes.

Optics

The advanced optical system in the ZM series microscope produces higher resolutions throughout its zoom range, with stunning contrast and color accuracy. The 0.67X-4.5X objective lenses offer excellent focus depth and a large working distance, with symmetrical zoom knobs to easily move through magnifications. 10X and 25X eyepieces are included, as well as 0.3X and 2X Barlow lenses to provide an expanded magnification range from 2X-225X, with high-eyepoint optics to accommodate glasses or goggles.

Magnifications and Working-Distances
 Objective
EyepieceStandard (100mm WD)0.3X Barlow (278mm WD)2X Barlow (38mm WD)
10X6.7X-45X2X-13.5X13.4X-90X
25X16.8X-112.5X5X-33.8X33.5X-225X




Ocular Adjustment

Easy Adjustments for Any User
Dual ocular diopters can be adjusted to maintain a consistent focus, greatly improving productivity. Sliding interpupillary adjusters ensure each user can properly align the eyepieces for comfortable viewing.


Trinocular Port

A Dedicated Port for Imaging
The switched trinocular photo port provides a dedicated mount for a camera. When the photo port is switched open, all light from the left objective is diverted to the port to provide maximum brightness for the camera to guarantee the best quality images.



Double-arm Boom-Stand

Heavy-duty, Multi-pivoting Support
The multi-pivoting, double-arm stand provides a stable, flexible support system. A drop-down column allows the head to be positioned at virtually any angle. Ball bearings provide smooth movement of the lateral arms, which can easily pivot the microscope out of the way when it is unnecessary. The heavy, steel base ensures the stability of the microscope, even when laden with attachments.



Illuminator

Polarizing LED Ring Lightwith White or Polarized Light for All Kinds of Demanding Applications

The polarized ring light minimizes unwanted glare and reflections from shiny or reflective surfaces, such as glass or metal. By controlling the polarization direction, you can effectively eliminate or significantly reduce these distracting elements, allowing for clearer visualization of the specimen. This helps to highlight specific details and structures in the sample, making them more visible and easier to observe.


Specifications

Microscope Head
Head TypeTrinocular, 45° incline, 360° rotatable
Optical SystemGreenough stereoscopic
Interpupillary AdjustmentSliding, 54-76mm
Ocular-port Diameter30mm
Dioptric AdjustmentBoth oculars, ±5dp
Eyepieces10X, 25X
Photo Portheight-adjustable 23mm tube
Objective Lenses0.67X-4.5X zoom, NA 0.0715 @ 4.5X
Objective Resolution214.5 lp/mm @ 4.5X
Native Field-of-View4.9mm-31.4mm
Native Working Distance100mm
Auxiliary Lens Mount48mm thread
Auxiliary (Barlow) Lenses Included0.3X, 278mm working distance
2X, 38mm working distance
Stand
Stand TypeA double-arm boom stand with ball bearing movement, cast-steel base
Stand Dimensions20" double-arm (overall length: 30"), 17" high pillar, 10-1/4"x8-1/4"x2"
Focusing-block Focus Range50mm

Packing List:

  • One trinocular stereo microscope head
  • One photo port attachment
  • One pair of Focusable Plan PL10X/22 Eyepieces
  • One pair of 25X eyepieces (one focusable)
  • One 0.3X Barlow lens
  • One 2X Barlow lens
  • One polarizing ring light
  • One removable polarizer/analyzer
  • One power adapter
  • One pair eye-guards
  • Dust caps
  • One double-arm boom stand with a focusing rack
