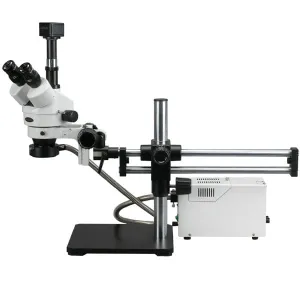

AmScope SM-5TZ-FOR-5M Trinocular Stereo Microscope 3.5X-90X Magnification on Ball Bearing Boom Stand w/ Fiber Optic Light and 5MP Camera

AmScope SM-5 Series Trinocular Stereo Microscope 3.5X-90X Magnification on Ball Bearing Boom Stand with Fiber Optic Light and 5MP Camera

• 3.5X-90X zoom microscope on ball-bearing boom stand
• Ball-bearing stand offering effortless horizontal adjustments
• 2-1/2" (65mm) field view and 8" (200mm) working distance
• 150W fiber optic ring light, auto-shut-off, color filter slot
• 5MP digital camera with advanced editing & measuring software for Windows XP/Vista/7/8/10

This trinocular 3.5X-90X zoom stereo microscopy system is mounted on a versatile ball-bearing boom stand. It comes with a 5MP digital camera and a 150W fiber optical ring illuminator. The trinocular head includes 30mm super widefield, high-eyepoint WF10X/20 eyepieces, giving users sharp, crystal clear images. The double-arm boom stand is equipped with a versatile ball-bearing design, which allows users to make horizontal adjustments at the touch of a finger.

The digital camera captures still images and video, and allows you to view a live stream on your PC. With software available for Windows, Mac, and Linux, it's a multi-platform imaging solution. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. Independent preview and capture resolutions allow you to view high-speed video while capturing high-definition images. For Mac and Linux, there is a lite version with limited processing features.

The fiber optical halogen illuminator provides even, bright, full-spectrum light illumination. The top window design of the illuminator makes it convenient to change bulbs, and the auto-shut-off mechanism cuts off electricity automatically when the window is open. The high optical resolution, super-wide field of view, large magnifying zoom range (26:1), and long working distance (8") makes this microscopy system an ideal instrument for manufacturers, engravers, gemologists, collectors and anyone in semiconductor and/or electronic industry.

Features :

• 3.5X-90X Ball-Bearing Boom Stereo Zoom Microscope with 5MP Digital Camera and Fiber Optical Illuminator
• Friction-free Double-Arm Boom Stand Allows You to Adjust its Horizontal Position of the at the Touch of a Finger!
• 150W Fiber Optic Halogen Ring Illumination with Dimmer
• High Resolution Optical System with Superior Flatness and Contrast, and True Color Images
• Erect Stereo Sharp Images Over a SUPER-Wide Field of View
• Accurate Alignment Ensures Extended, Fatigue-Free Viewing
• 45° Inclined Trinocular Head with 30mm WF10X/20 SUPER Widefield Eyepieces
• Adjustable Diopters on Both Ocular-Tubes
• Adjustable Interpupillary Distance
• Full Optical Glass Elements
• Precise Ground Glass Lenses
• 8" Large Working Distance
• Heavy-Duty Solid Steel Stand Finished with Stain Resistant Enamel
• Rugged Solid Steel Base
• All Metal Mechanical Components
• Rubber Eye-guards Included
• Manufactured Under ISO 9001 Quality Control Standard
• Excellent Five (5) Year Factory Warranty

Specifications :

• Head: 45° inclined 360° swiveling trinocular
• Eyepieces: 30mm super widefield high-eyepoint WF10X/20
• Barlow Lens: 0.5X 2.0X
• Objective: 0.7-4.5X
• Zoom Range: 27:1
• Diopter Adjustment: ±5dp
• Interpupillary Distance: 2-3/16" - 2-15/16"(55-75mm)
• Working Distance: 8" (200mm)
• Boom Stand: 22" ball-bearing double-arm (overall length: 30"), 16" high pillar, 11-1/2"x10-1/4"x1-0" solid cast steel base
• Accessories: eye-guards

Camera Specifications:

• Sensor: Aptina MT9P001
• Sensor Type: CMOS
• Sensor Size: 5.7x4.28mm
• Pixel Size: 2.2
• Resolution: 5.1MP
• Frame Rate: 5@2592x1944, 18@1280x960, 60@640x480
• Sensitivity: 0.53 V/lux-sec
• Compatibility: Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX, Linux

Software Specifications:

• OS Requirements: Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+
• Hardware Requirements: Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB2.0 port

Packing List :

• One Trinocular Stereo Zoom Head
• Two Pairs of Super Widefield High-Eyepoint Eyepieces, 10X
• Two Balow Lenses, 0.5X 2.0X
• One Ball-Bearing Double-Arm Boom Stand
• One Focusing Rack
• One Fiber Optical Ring Light
• One Ring Light Mounting Adapter
• One Pair of Eye-Guards
• User's Manual Download
• One 5MP USB2.0 Microscope Digital Camera with Reduction Lens
• Two Mounting Adapters for the Camera
• One USB Cable
• One CD with Driver, Software and User's Instructions
• Shipping Weight: 69 lbs
