AmScope SM-4TZZ-FODR-HD25 Zoom Trinocular Stereo Microscope 3.5X-180X Magnification w/ 150W Halogen Dual Gooseneck & Ring Lights and 5MP HDMI CMOS C-Mount Camera on Double Arm Boom Stand

AmScope SM-4TZZ-FODR-HD25 Zoom Trinocular Stereo Microscope 3.5X-180X Magnification w/ 150W Halogen Dual Gooseneck & Ring Lights and 5MP HDMI CMOS C-Mount Camera on Double Arm Boom Stand
Click to zoom
  • Overview
  • Customers Also Bought
  • Your Recently Viewed Items
  • Reviews
  • Brand:AmScope
  • Part #:SM-4TZZ-FODR-HD25
  • Model #:SM-4 Series
Condition: new
Warranty

Overview

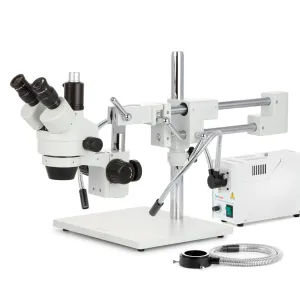

AmScope SM-4 Series Zoom Trinocular Stereo Microscope 3.5X-180X Magnification with 150W Halogen Dual Gooseneck & Ring Lights and 5MP HDMI CMOS C-Mount Camera on Double Arm Boom Stand

  • 3.5X-180X extended zoom magnification using high-quality Greenough stereoscopic objective lenses with 10X and 20X eyepieces, and 0.5X and 2X Barlow lenses.
  • The microscope provides up to 6.5" (165mm) of working distance.
  • A highly-versatile stereo microscope on a heavy-duty, multi-pivot boom-stand which allows the microscope to easily swing into place when needed, and away when not.
  • Dual diopters can be adjusted to maintain consistent focus throughout the magnification range, greatly improving productivity.
  • The stereo optics provide upright images with clear depth-of-field and a wide view for hands-on applications.
  • A trinocular photo-port provides a dedicated mount for adding a camera.
  • This microscope is ideal for laboratories, repair shops, and engravers.
  • Includes a 1080p/5MP multi-function camera with built-in recording that can stream live video over HDMI and connect to a computer using wi-fi
  • A 150W halogen illuminator with two heavy-duty fiber-optic attachments: a 35" ring-light and 22" dual-goosenecks. Active cooling and auto-shutoff avoids overheating in strenuous environments.

The SM-4T is a heavy-duty, highly-flexible microscope designed for biological and industrial applications. This model is especially popular in the QC, repair and engraving industries thanks to its ease-of-use and reliability. With its wide zoom range and double-arm boom-stand, this model will become an indispensable instrument in any workshop or lab.

Optics

The stereo optics provide clear, sharp images with excellent focus-depth and a large working-distance. With 0.7X-4.5X zoom objectives, moving through the magnification range is as easy as turning a knob. 10X and 20X eyepieces are included, as well as 0.5X and 2X Barlow lenses to provide an expanded magnification range from 3.5X-180X, with high-eyepoint optics to accommodate glasses or goggles.

Ocular Adjustment

Dual ocular diopters can be adjusted to maintain consistent focus, greatly improving productivity. Rotating interpupillary adjusters simplify the process of aligning the eyepieces for each user.

Trinocular Port

The switched trinocular photo-port provides a dedicated mount for a camera. When the photo-port is switched open, all light from the left objective is diverted to the port to provide maximum brightness for the camera to guarantee the best quality images. This microscope uses our CX series trinocular port, so it can be easily replaced with optional C-mount ports to match specific cameras.

Double-arm Boom-Stand

The multi-pivoting, double-arm stand provides a stable, flexible support system, ideal for hands-on work. Use of a drop-down column allows the head to be positioned at virtually any angle. Ball-bearings provide smooth movement of the lateral arms, which can easily pivot the microscope out of the way when it is not needed. The heavy, steel base ensures the stability of the microscope, even when laden with attachments.

Digital Imaging

This microscope comes with an HDMI-capable digital camera, delivering 1080p video up to 60fps, and 5MP still images. The highly-sensitive digital sensor makes this camera ideal for low-light applications, including dark-field and fluorescence. Able to be used as a standalone recording device using Secure Digital memory, or as a WiFi camera on a networked computer, this is an extremely flexible imaging solution.

Connected to an HDMI monitor or TV, 1080p live video can be viewed at a super-smooth 60fps. The included USB mouse allows you to make adjustments in the internal software for settings such as white-balance and exposure, and control recording functions. As an alternative solution, connect to the camera over WiFi for remote software control, with 25fps streaming. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. With the ability to calibrate scales at multiple magnifications, the software can be used for multi-level inspection. For Mac and Linux, there is a lite version of the software which can capture video and still images, and includes limited processing features.

Additional Items

This package includes a powerful 150W illuminator with a ring-light and dual fiber-optic goosenecks. The incandescent light-source projects ultra-bright, full-spectrum light which is channeled through either of the included fiber-optic attachments. The dual 22" gooseneck light-guides allow you to use two sources of direct lighting from virtually any angle. The 35" ring-light attachment provides the smoothest ring of encompassing overhead illumination when attached to the microscope's objective housing. The flexible, heavy-duty metal-sheathed guides will hold up to heavy use in your workshop, factory, or lab without worry of crimping or breaking. The light-source is equipped with an active cooling system and an auto-shutoff circuit to avoid overheating in strenuous environments.

Specifications

Microscope Head
Head TypeTrinocular, 45° incline, 360° rotatable
Optical SystemGreenough stereoscopic
Interpupillary AdjustmentCompensation-free gemel, 54-76mm
Ocular-port Diameter30mm
Dioptric AdjustmentBoth oculars, ±5dp
Eyepieces10X, 20X
Photo Portheight-adjustable 23mm tube, SM series
Objective Lenses0.7X-4.5X zoom
Objective Numerical Aperture0.065 @ 4.5X
0.02 @ 0.7X
Objective Resolution195 lp/mm @ 4.5X
60 lp/mm @ 0.7X
Native Field-of-View4.4mm-28.6mm
Native Working Distance100mm
Auxiliary Lens Mount48mm thread
Auxiliary (Barlow) Lenses Included0.5X, 165mm working distance
2X, 30mm working distance
Stand
Stand TypeDouble-arm boom-stand with ball-bearing movement, cast-steel base
Stand Dimensions20" double-arm (overall length: 30"), 17" high pillar, 10-1/4"x8-1/4"x2"
Focusing-block Focus Range50mm

Camera Specifications
Sensor TypeCMOS
Sensor Optical Format1/1.9"
Active Pixels5.04M (2592 x 1944)
Pixel Size2.4µm x 2.4µm
Active Sensor Area6.22mm x 4.67mm
Shutterelectronic rolling shutter
Sensitivity425mV @ 1/30s (f/5.6)
Spectral Response380-650nm with IR-cut filter
Video Preview Resolution (HDMI)1920 x 1080
Video Preview Framerate (HDMI)60fps
Video Capture Resolution1920 x 1080
Video Capture Framerate30fps (SecureDigital)
25fps max (wi-fi)
Internal Video Capture FormatASF
Photo Capture Resolution1920 x 1080
Internal Photo Capture FormatJPG
Recording MediaSecureDigital card
ConnectivityHDMI, wi-fi
Wi-fi Standard802.11n 150Mbps
Lens-mountC-mount
Compensating Lens0.5X
Power12VDC 1A

Software

OS RequirementsWindows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+
Hardware RequirementsIntel Core2 2.8GHz or comparable processor, 4GB RAM
Features
Windows Version
Live video preview
Captures still images and video
Time-lapse capture
Exposure and white-balance controls
Dark-field correction
Digital binning
Image processing
Measurement tools, including lines, arcs, polygons
Segmentation and counting tools
Image-stitching, extended depth-of-field, HDR
Fluorescence color-mapping
Mac/Linux Versions
Live video preview
Captures still images and video
Exposure control
Color adjustment
Measurement tools, including lines, arcs, polygons

Packing List:

  • One trinocular stereo microscope head
  • One photo port attachment
  • 10X eyepiece(s)
  • 20X eyepiece(s)
  • One 0.5X Barlow lens
  • One 2X Barlow lens
  • One pair eye-guards
  • One double-arm boom-stand with focusing rack
  • One HD Digital Camera
  • One USB Mouse
  • One USB WiFi Antenna
  • One HDMI Cable
  • One SD Card
  • One Power Adapter
  • One CD with Software and User's Instructions
  • One halogen light source
  • One power cord
  • Two spare fuses
  • One fiber-optic dual-gooseneck attachment
  • One fiber-optic ring-light attachment
  • One ring-light mounting adapter
