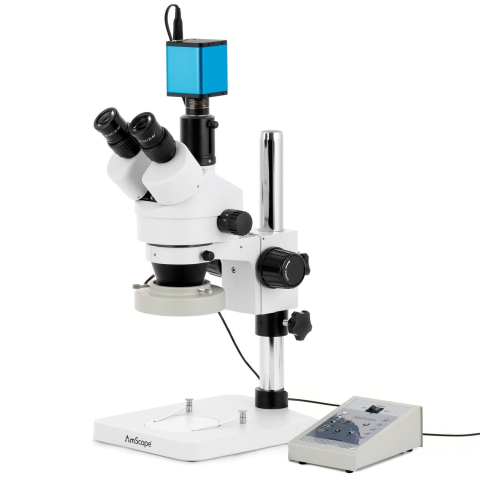

AmScope SM-1TSZZ-80AM-AF2 SM-1 Series Zoom Trinocular Stereo Microscope 3.5X-180X w/ 80 LED Direction Variable Ring Light and 1080P 2MP HDMI Auto-focus Camera on Pillar Stand

  • Overview
  • Accessories
  • Customers Also Bought
  • Your Recently Viewed Items
  • Reviews
AmScope SM-1TSZZ-80AM-AF2 SM-1 Series Zoom Trinocular Stereo Microscope 3.5X-180X w/ 80 LED Direction Variable Ring Light and 1080P 2MP HDMI Auto-focus Camera on Pillar Stand
Click to zoom
  • Brand:AmScope
  • Part #:SM-1TSZZ-80AM-AF2
  • Model #:SM-1 Series
Safe Checkout
Fully secured
Money back Guaranty
100% satisfaction

Overview


Key Features:

  • 3.5X-180X extended zoom magnification using high-quality Greenough stereoscopic objective lenses with 10X and 20X eyepieces, and 0.5X and 2X Barlow lenses.
  • Continuous zoom magnification
  • Super widefield optics offer crystal clear images with a large field-of-view
  • Sturdy pillar stand with a small footprint
  • Trinocular port for adding photo or video capability
  • Includes an auto-focus 1080p/2MP multi-function camera with built-in recording that can stream live video over HDMI and connect to a computer using wi-fi
  • The flexible 80-LED ring-light uses a multi-zone controller to project either directional or fully-encompassing light.

This is a trinocular stereo zoom microscope with a compact stand with 12" pillar. The stand's base has a small footprint to take up minimal space. The microscope incorporates all the most excellent features of a high quality laboratory instrument. Designed to meet the demands of modern microscopy applications, this microscope exceeds all expectations. It comes with SUPER widefield optics and basic table stand. This microscope offers high resolution and good depth within a broad field of view. It provides crystal clear sharp stereo images with a 4" (100mm) native working distance. Its 45 degree inclined ocular tubes ensure an easy observation and rubber eyeguards provide further comfort. Its trinocular port enables you to add photo or video capability.

The stereo optics provide clear, sharp images with excellent focus-depth and a large working-distance. With 0.7X-4.5X zoom objectives, moving through the magnification range is as easy as turning a knob. 10X and 20X eyepieces are included, as well as 0.5X and 2X Barlow lenses to provide an expanded magnification range from 3.5X-180X, with high-eyepoint optics to accommodate glasses or goggles.

This microscope is useful for many applications. It can be used in gemology, geology, forestry, archaeology, agriculture and biology. It is appropriate for educational purposes in hospitals and schools. It is great for the exploration of the world of surface details and fine structures of various materials like wood, metal, solder, semiconductor and gemstone. It is perfect for the examination of insects, plants, rocks, stamps, coins, jewel, soldered points, microelectronic components, circuit boards or virtually any three dimensional objects. This scope is an ideal tool for research labs, gemologists, collectors, engravers, watchmakers, jewelers, dies-makers, philatelists, and anyone in semiconductor or electronic industry.

This microscope comes with a cutting-edge auto-focus camera designed specifically for microscopy. It offers 1080p live-viewing over HDMI, and can record 2MP photos and video directly to Secure Digital media. The internal software provides control over exposure and color, and tools for measurements and comparisons. The addition of auto-focus limits the need to make focus-adjustments when using the camera as the primary means of observation.

Connected to an HDMI monitor or TV, 1080p live video can be viewed at a super-smooth 60fps. The included USB mouse allows you to control the camera through its easy-to-use interface. As an alternative solution, connect to the camera over WiFi for remote software control, with 25fps streaming. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. With the ability to calibrate scales at multiple magnifications, the software can be used for multi-level inspection. For Mac and Linux, there is a lite version of the software which can capture video and still images, and includes limited processing features.

This package includes an 80-LED ring-light with a multi-zone controller for bright and cool illumination using multiple projection patterns. This ring-light mounts to the microscope's objective housing, and can project fully-encompassing light, or isolated areas for directional lighting. Whether used as the sole light-source or in combination with additional illuminators, the ring-light produces a crucial light pattern for virtually any application. Energy-efficient and producing low heat, this ring-light can be used with biological specimens as well as industrial.

Features :

  • 0.7X-4.5X Continuous Zoom Objective Lenses
  • A photo port for adding a camera
  • 30mm Super Widefield Oculars
  • 4" (100mm) Large Native Working Distance
  • 45 Degree Inclined Ocular Tubes
  • Crystal Clear Original True Color Images
  • Erect Sharp Stereo Images over a Super Widefield of View
  • High Resolution with Great Flatness and Contrast
  • Accurate Alignment Ensuring Fatigue-Free Comfortable Observation
  • Both Ocular Tubes with Adjustable Diopters
  • Adjustable Interpupillary Distance
  • Full Optical Glass Elements
  • Precise Ground Glass Lenses
  • Metal Pillar Stand Finished with Stain Resistant Enamel
  • All Metal Mechanical Components

Specifications

Microscope Head
Head Type Trinocular, 45° incline, 360° rotatable
Optical System Greenough stereoscopic
Interpupillary Adjustment Compensation-free gemel, 54-76mm
Ocular-port Diameter 30mm
Dioptric Adjustment Both oculars, ±5dp
Eyepieces 10X, 20X
Photo Port height-adjustable 23mm tube, SM series
Objective Lenses 0.7X-4.5X zoom
Objective Numerical Aperture 0.065 @ 4.5X
0.02 @ 0.7X
Objective Resolution 195 lp/mm @ 4.5X
60 lp/mm @ 0.7X
Native Field-of-View (10X Eyepieces) 4.4mm-28.6mm
Native Working Distance 100mm
Auxiliary (Barlow) Lens 0.5X, 165mm working distance
2X, 30mm working distance
Stand
Stand Type Pillar stand with large base
Stand Dimensions Base: 10" x 7-7/8" x 10.75" (254 x 200 x 275mm)
Pillar 12" (300mm) height, 1.25" (32mm) diamater
Focusing-block Focus Range 50mm
Stage Plate Diameter 95mm

Camera Specifications
Sensor Type CMOS
Sensor Optical Format 1/1.9"
Active Pixels 2.07M (1920 x 1080)
Pixel Size 3.75µm x 3.75µm
Active Sensor Area 7.2mm x 4.05mm
Shutter electronic rolling shutter
Sensitivity 1120mV @ 1/30s (f/5.6)
Spectral Response 380-650nm with IR-cut filter
Video Preview Resolution (HDMI) 1920 x 1080
Video Preview Framerate (HDMI) 60fps
Video Capture Resolution 1920 x 1080
Video Capture Framerate 30fps (SecureDigital)
25fps (wi-fi)
Internal Video Capture Format ASF
Photo Capture Resolution 1920 x 1080
Internal Photo Capture Format JPG
Recording Media SecureDigital card
Connectivity HDMI, wi-fi
Wi-fi Standard 802.11n 150Mbps
Lens-mount C-mount
Compensating Lens 0.5X
Power 12VDC 1A

Software

OS Requirements Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+
Hardware Requirements Intel Core2 2.8GHz or comparable processor, 4GB RAM
Features
Windows Version
Live video preview
Captures still images and video
Time-lapse capture
Exposure and white-balance controls
Dark-field corr ction
Digital binning
Image processing
Measurement tools, including lines, arcs, polygons
Segmentation and counting tools
Image-stitching, extended depth-of-field, HDR
Fluorescence color-mapping
Mac/Linux Versions
Live video preview
Captures still images and video
Exposure control
Color adjustment
Measurement tools, including lines, arcs, polygons

Packing List:

  • One trinocular stereo microscope head
  • One photo port
  • 10X eyepiece(s)
  • 20X eyepiece(s)
  • One 0.5X Barlow lens
  • One 2X Barlow lens
  • One pair eye-guards
  • One stand base
  • One stand pillar
  • One focusing block
  • One pair stage clips
  • One black/white stage plate
  • One hex wrench
  • Screws and washers
  • One digital camera
  • One USB mouse
  • One USB wi-fi dongle
  • One HDMI Cable
  • One SD card
  • One power adapter
  • One software CD
  • One LED ring-light
  • One power controller
  • One AC adapter
  • One ring-light mounting adapter
