AmScope SM-1TSZ-144S-P SM-1 Series Digital Zoom Trinocular Stereo Microscope 3.5X-90X Magnification on Pillar Stand w/ 144-LED and USB Digital Camera

AmScope SM-1TSZ-144S-P SM-1 Series Digital Zoom Trinocular Stereo Microscope 3.5X-90X Magnification on Pillar Stand w/ 144-LED and USB Digital Camera
Click to zoom
  • Overview
  • Customers Also Bought
  • Your Recently Viewed Items
  • Reviews
  • Brand:AmScope
  • Part #:SM-1TSZ-144S-P
  • Model #:SM-1 Series
Condition: new
Warranty
Out Of Stock

Overview

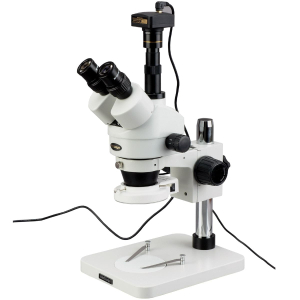

AmScope SM-1 Series Digital Zoom Trinocular Stereo Microscope 3.5X-90X Magnification on Pillar Stand with 144-LED and USB Digital Camera

Features:

  • 3.5X-90X Super widefield zoom magnification power with crystal clear images
  • 2-1/2" (65mm) super widefield view and 8" (200mm) working distance
  • Digital camera with advanced editing, processing & measuring software for Windows XP/Vista/7/8/10, Mac OSX, Linux
  • 144-LED ring light with a compact design and built-in dimmer
  • Sturdy all-metal pillar stand

This is a trinocular stereo microscope with a 144-LED compact ring light and a 640x480 pixel USB digital camera. The microscope has a super widefield optical system that provides a very large zoom magnification power (26:1) which offers a large working distance (8", 200mm). The trinocular port uses the third port for camera capabilities, or a third party to view as well, giving you the remaining two ports to view your specimen. The 144-LED ring light has a compact design with a built-in dimmer, providing cool, even and bright LED illumination.

The digital camera captures still images and video, and allows you to view a live stream on your PC. With software available for Windows, Mac, and Linux, it's a multi-platform imaging solution. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. Independent preview and capture resolutions allow you to view high-speed video while capturing high-definition images. For Mac and Linux, there is a lite version with limited processing features.

This microscopy system is an ideal instrument for manufacturing engineers, lab technicians, gemologists, circuit board inspectors, and anyone in electronic and semiconductor industries. It is also the right microscope for biological laboratory applications that require low heat release.

Features:

  • A perfect LED stereo inspection microscope with a 640x480 pixel color digital camera
  • Variable, cool, even and bright 144-LED ring illumination
  • 3.5X-90X super wide zoom magnification power
  • 8" (200mm) extremely large working distance
  • High resolution with great flatness and contrast, giving sharp and clear images
  • Trinocular head with 45-degree inclined 360-degree swiveling eye tubes
  • 30mm SUPER widefield high-eyepoint eyepieces with a 20 mm field of view
  • Sharp stereo erect images with a wide field of view
  • Crystal clear, original true color microscope images
  • Dual eye tubes with adjustable diopters
  • Contemporary table stand
  • Accurate alignment reduces eye strain for longer periods of viewing
  • Full optical glass elements
  • Precise ground glass lenses
  • Full metal chrome-plated mechanical components
  • Adjustable interpupillary distance
  • Rubber eyeguards included
  • Manufactured Under ISO 9001 Quality Control Standard
  • Excellent Five (5) Year Factory Warranty

Specifications:

  • Head: 360 degree rotatable 45 degree inclined trinocular
  • Eyepiece: 30mm super widefield high-eyepoint WH10X/20MM
  • Barlow Lens: 0.5X and 2.0X
  • Zoom Range: 0.7X-4.5X
  • Diopter Adjustment: +/- 5dp
  • Interpupillary Distance: 2-3/16" - 2-15/16"(55-75mm)
  • Working Distance: 8" (200mm)
  • Illumination: 144-LED compact ring light
  • Power Input: 110-240V, 50-60HZ, automatic switching
  • Stand: 10" x 7-7/8" x 10.75" (254 x 200 x 275mm)
  • Round Plate: 3-3/4" (95mm) in diameter
  • Accessories: a pair of eye-guards

Camera Specifications:

  • Sensor: Aptina MT9V011
  • Sensor Type: CMOS
  • Sensor Size: 3.58x2.69mm
  • Pixel Size: 5.6
  • Resolution: 0.3MP
  • Frame Rate: 30@640x480, 80@320x240
  • Sensitivity: 1.9V/lux-sec

Software Specifications:

  • OS Requirements: Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+
  • Hardware Requirements: Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB2.0 port

Packing List:

  • One Trinocular Stereo Zoom Head
  • One Pair of Super Widefield 10X Eyepieces
  • One 0.5X Barlow Lens
  • One 2.0X Barlow Lens
  • One 144-LED Compact Ring Light
  • One Pillar Table Stand
  • One Focusing Rack
  • One Round Plastic Plate
  • One Pair of Eye-Guards
  • One Pair of Clips
  • One Dust Cover
  • User's Manual Download
  • One 640x480 pixel USB2.0 Digital Camera with Reduction Lens
  • Two Mounting Adapters
  • One 6' (1.8m) USB Cable
  • Package Dimension: 17" x 14" x 14.5"
  • Shipping Weight: 20 lbs
