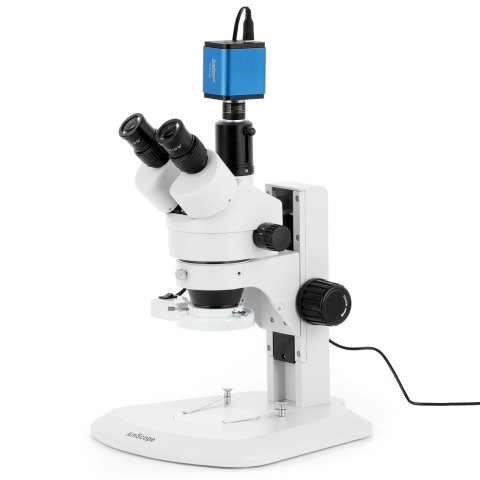

AmScope SM-1TRZZ-FRL-HD22 SM-1 Series Zoom Trinocular Stereo Microscope 3.5X-180X Magnification w/ 8W Fluorescent Ring Light and 2MP HDMI CMOS C-Mount Camera on Track Stand
- Overview
- Customers Also Bought
- Your Recently Viewed Items
- Reviews













Overview
Key Features:
- 3.5X-180X extended zoom magnification using high-quality Greenough stereoscopic objective lenses with 10X and 20X eyepieces, and 0.5X and 2X Barlow lenses.
- Continuous zoom magnification
- Super widefield optics offer crystal clear images with a large field-of-view
- Sturdy precision track-stand with long focus range
- Trinocular port for adding photo or video capability
- Includes a 1080p/2MP multi-function ultra-sensitive camera with built-in recording that can stream live video over HDMI and connect to a computer using wi-fi
- The lightweight 8W fluorescent ring-light produces a smooth, encompassing field of light for use with any application.
This is a binocular stereo zoom microscope with a precision track-stand. It incorporates all the most excellent features of a high quality laboratory instrument. Designed to meet the demands of modern microscopy applications, this microscope exceeds all expectations. It comes with SUPER widefield optics and offers high resolution and good depth within a broad field of view. It provides crystal clear sharp stereo images with a 4" (100mm) native working distance. Its 45 degree inclined ocular tubes ensure an easy observation and rubber eyeguards provide further comfort. Its trinocular port enables you to add photo or video capability.
The stereo optics provide clear, sharp images with excellent focus-depth and a large working-distance. With 0.7X-4.5X zoom objectives, moving through the magnification range is as easy as turning a knob. 10X and 20X eyepieces are included, as well as 0.5X and 2X Barlow lenses to provide an expanded magnification range from 3.5X-180X, with high-eyepoint optics to accommodate glasses or goggles.
This microscope is useful for many applications. It can be used in gemology, geology, forestry, archaeology, agriculture and biology. It is appropriate for educational purposes in hospitals and schools. It is great for the exploration of the world of surface details and fine structures of various materials like wood, metal, solder, semiconductor and gemstone. It is perfect for the examination of insects, plants, rocks, stamps, coins, jewel, soldered points, microelectronic components, circuit boards or virtually any three dimensional objects. This scope is an ideal tool for research labs, gemologists, collectors, engravers, watchmakers, jewelers, dies-makers, philatelists, and anyone in semiconductor or electronic industry.
This microscope comes with an HDMI-capable digital camera, delivering 1080p video up to 60fps, and 2MP still images, even in low light. The highly-sensitive digital sensor makes this camera ideal for low-light applications, including darkfield and fluorescence. Able to be used as a standalone recording device using Secure Digital memory, or as a wi-fi camera on a networked computer, this is an extremely flexible imaging solution.
Connected to an HDMI monitor or TV, 1080p live video can be viewed at a super-smooth 60fps. The included USB mouse allows you to make adjustments in the internal software for settings such as white-balance and exposure, and control recording functions. As an alternative solution, connect to the camera over WiFi for remote software control, with 25fps streaming. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. With the ability to calibrate scales at multiple magnifications, the software can be used for multi-level inspection. For Mac and Linux, there is a lite version of the software which can capture video and still images, and includes limited processing features.
This package includes an 8W fluorescent ring-light for seamless lighting. This lightweight illuminator mounts to the microscope's objective housing, and projects a smooth, encompassing field of light over objects, eliminating most shadows. Whether used as the sole light-source or in combination with additional illuminators, the ring-light produces a crucial light pattern for virtually any application.
Features :
Specifications
Microscope Head | |
Head Type | Trinocular, 45° incline, 360° rotatable |
Optical System | Greenough stereoscopic |
Interpupillary Adjustment | Compensation-free gemel, 54-76mm |
Ocular-port Diameter | 30mm |
Dioptric Adjustment | Both oculars, ±5dp |
Eyepieces | 10X, 20X |
Photo Port | height-adjustable 23mm tube, SM series |
Objective Lenses | 0.7X-4.5X zoom |
Objective Numerical Aperture | 0.065 @ 4.5X 0.02 @ 0.7X |
Objective Resolution | 195 lp/mm @ 4.5X 60 lp/mm @ 0.7X |
Native Field-of-View (10X Eyepieces) | 4.4mm-28.6mm |
Native Working Distance | 100mm |
Auxiliary (Barlow) Lens | 0.5X, 165mm working distance 2X, 30mm working distance |
Stand | |
Stand Type | Track stand |
Stand Dimensions | Base: 11.4" x 11.8" (290mm x 300mm) Column Height: 11.8" (300mm) |
Focusing-track Range | 7.9" (200mm) |
Stage Illumination Plate Diameter | 95mm |
Camera Specifications | |
Sensor Type | CMOS |
Sensor Optical Format | 1/1.9" |
Active Pixels | 2.07M (1920 x 1080) |
Pixel Size | 3.75µm x 3.75µm |
Active Sensor Area | 7.2mm x 4.05mm |
Shutter | electronic rolling shutter |
Sensitivity | 1120mV @ 1/30s (f/5.6) |
Spectral Response | 380-650nm with IR-cut filter |
Video Preview Resolution (HDMI) | 1920 x 1080 |
Video Preview Framerate (HDMI) | 60fps |
Video Capture Resolution | 1920 x 1080 |
Video Capture Framerate | 30fps (SecureDigital) 25fps max (wi-fi) |
Internal Video Capture Format | ASF |
Photo Capture Resolution | 1920 x 1080 |
Internal Photo Capture Format | JPG |
Recording Media | SecureDigital card |
Connectivity | HDMI, wi-fi |
Wi-fi Standard | 802.11n 150Mbps |
Lens-mount | C-mount |
Compensating Lens | 0.5X (optional) |
Power | 12VDC 1A |
Software
OS Requirements | Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+ | ||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Hardware Requirements | Intel Core2 2.8GHz or comparable processor, 4GB RAM | ||||||||||||||||||
Features |
|
