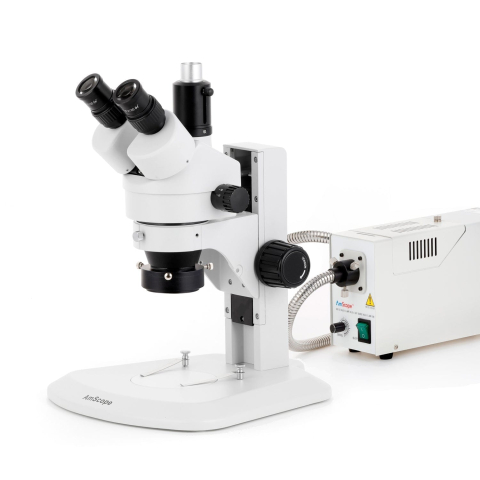

AmScope SM-1TRZZ-FOR-5M3 SM-1 Series Zoom Trinocular Stereo Microscope 3.5X-180X Magnification w/ 150W Halogen Ring Light and 5MP USB 3.0 C-mount Camera on Track Stand
- Overview
- Customers Also Bought
- Your Recently Viewed Items
- Reviews










Overview
Key Features:
- 3.5X-180X extended zoom magnification using high-quality Greenough stereoscopic objective lenses with 10X and 20X eyepieces, and 0.5X and 2X Barlow lenses.
- Continuous zoom magnification
- Super widefield optics offer crystal clear images with a large field-of-view
- Sturdy precision track-stand with long focus range
- Trinocular port for adding photo or video capability
- Monitor and capture photos and videos with the included 5MP USB 3.0 camera. Professional microscopy software for Windows, Mac, and Linux provide tools for image processing, measuring, and more.
- A 150W halogen illuminator with 35" heavy-duty fiber-optic ring-light provides the smoothest overhead lighting possible. Active cooling and auto-shutoff avoids overheating in strenuous environments.
This is a binocular stereo zoom microscope with a precision track-stand. It incorporates all the most excellent features of a high quality laboratory instrument. Designed to meet the demands of modern microscopy applications, this microscope exceeds all expectations. It comes with SUPER widefield optics and offers high resolution and good depth within a broad field of view. It provides crystal clear sharp stereo images with a 4" (100mm) native working distance. Its 45 degree inclined ocular tubes ensure an easy observation and rubber eyeguards provide further comfort. Its trinocular port enables you to add photo or video capability.
The stereo optics provide clear, sharp images with excellent focus-depth and a large working-distance. With 0.7X-4.5X zoom objectives, moving through the magnification range is as easy as turning a knob. 10X and 20X eyepieces are included, as well as 0.5X and 2X Barlow lenses to provide an expanded magnification range from 3.5X-180X, with high-eyepoint optics to accommodate glasses or goggles.
This microscope is useful for many applications. It can be used in gemology, geology, forestry, archaeology, agriculture and biology. It is appropriate for educational purposes in hospitals and schools. It is great for the exploration of the world of surface details and fine structures of various materials like wood, metal, solder, semiconductor and gemstone. It is perfect for the examination of insects, plants, rocks, stamps, coins, jewel, soldered points, microelectronic components, circuit boards or virtually any three dimensional objects. This scope is an ideal tool for research labs, gemologists, collectors, engravers, watchmakers, jewelers, dies-makers, philatelists, and anyone in semiconductor or electronic industry.
Monitor and capture photos and videos with the included 5.0MP USB3.0 camera. The C-mount camera is specially designed for use with microscopes, allowing you to watch live images, and to record photos or videos on your computer. This ability to view microscopic images on your computer reduces eye-strain, and allows groups of people to view images at the same time. The USB 3.0 connection provides greater bandwidth for faster frame-rates. A 0.5X reduction lens is included for use with 23mm-30.5mm ports to capture more of the microscope's field-of-view. Our professional software for Windows provides a wide assortment of capture and photo-editing functions including color correction, time-lapse capture, image stitching, and a full complement of measuring tools. A lite version of our software is available for Mac and Linux with essential functionality for capturing photos and videos.
This package includes a powerful 150W illuminator with a fiber-optic ring-light. The incandescent light-source projects ultra-bright, full-spectrum light which is channeled through the 35" fiber-optic light-guide which provides the smoothest ring of encompassing illumination. The flexible, heavy-duty metal-sheathed guide will hold up to heavy use in your workshop, factory, or lab without worry of crimping or breaking. The light-source is equipped with an active cooling system and an auto-shutoff circuit to avoid overheating in strenuous environments.
Features :
Specifications
Microscope Head | |
Head Type | Trinocular, 45° incline, 360° rotatable |
Optical System | Greenough stereoscopic |
Interpupillary Adjustment | Compensation-free gemel, 54-76mm |
Ocular-port Diameter | 30mm |
Dioptric Adjustment | Both oculars, ±5dp |
Eyepieces | 10X, 20X |
Photo Port | height-adjustable 23mm tube, SM series |
Objective Lenses | 0.7X-4.5X zoom |
Objective Numerical Aperture | 0.065 @ 4.5X 0.02 @ 0.7X |
Objective Resolution | 195 lp/mm @ 4.5X 60 lp/mm @ 0.7X |
Native Field-of-View (10X Eyepieces) | 4.4mm-28.6mm |
Native Working Distance | 100mm |
Auxiliary (Barlow) Lens | 0.5X, 165mm working distance 2X, 30mm working distance |
Stand | |
Stand Type | Track stand |
Stand Dimensions | Base: 11.4" x 11.8" (290mm x 300mm) Column Height: 11.8" (300mm) |
Focusing-track Range | 7.9" (200mm) |
Stage Illumination Plate Diameter | 95mm |
Camera Specifications | |
Sensor Type | CMOS |
Sensor Optical Format | 1/2.5" |
Active Pixels | 4.9M (2560 x 1922) |
Pixel Size | 2.2µm x 2.2µm |
Active Sensor Area | 5.63mm x 4.23mm |
Shutter | electronic rolling shutter |
Sensitivity | 1.76V/Lux-sec |
Spectral Response | 380-650nm with IR-cut filter |
Capture Resolution and Maximum Framerate | 14.5fps @ 2560x1922 39fps @ 1280x960 101fps @ 640x480 |
Connectivity | USB 3.0 |
Lens-mount | C-mount |
Compensating Lens | 0.5X |
Power | 5VDC over USB |
Software
OS Requirements | Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+ | ||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Hardware Requirements | Intel Core2 2.8GHz or comparable processor, 4GB RAM | ||||||||||||||||||
Features |
|
