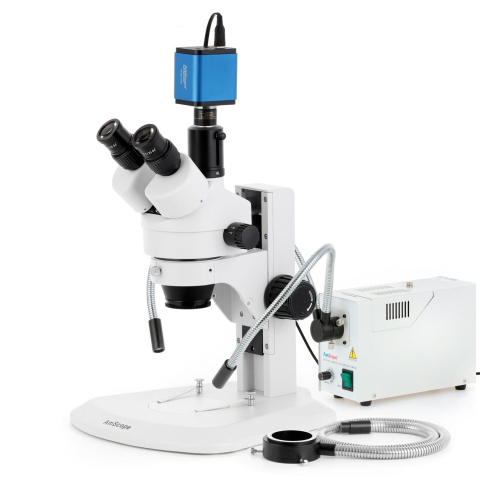

AmScope SM-1TRZZ-FODR-HD2GS SM-1 Series Zoom Trinocular Stereo Microscope 3.5X-180X w/ 150W Halogen Dual Gooseneck & Ring Lights and 2MP HDMI Global Shutter CMOS C-Mount Camera on Track Stand
- Overview
- Customers Also Bought
- Your Recently Viewed Items
- Reviews













Overview
Key Features:
- 3.5X-180X extended zoom magnification using high-quality Greenough stereoscopic objective lenses with 10X and 20X eyepieces, and 0.5X and 2X Barlow lenses.
- Continuous zoom magnification
- Super widefield optics offer crystal clear images with a large field-of-view
- Sturdy precision track-stand with long focus range
- Trinocular port for adding photo or video capability
- Includes a 1080p/2MP multi-function, ultra-sensitive camera using global-shutter technology for superior performance. Built-in recording, live streaming over HDMI, and wi-fi connectivity for working with computers with multi-user ability
- A 150W halogen illuminator with two heavy-duty fiber-optic attachments: a 35" ring-light and 22" dual-goosenecks. Active cooling and auto-shutoff avoids overheating in strenuous environments.
This is a binocular stereo zoom microscope with a precision track-stand. It incorporates all the most excellent features of a high quality laboratory instrument. Designed to meet the demands of modern microscopy applications, this microscope exceeds all expectations. It comes with SUPER widefield optics and offers high resolution and good depth within a broad field of view. It provides crystal clear sharp stereo images with a 4" (100mm) native working distance. Its 45 degree inclined ocular tubes ensure an easy observation and rubber eyeguards provide further comfort. Its trinocular port enables you to add photo or video capability.
The stereo optics provide clear, sharp images with excellent focus-depth and a large working-distance. With 0.7X-4.5X zoom objectives, moving through the magnification range is as easy as turning a knob. 10X and 20X eyepieces are included, as well as 0.5X and 2X Barlow lenses to provide an expanded magnification range from 3.5X-180X, with high-eyepoint optics to accommodate glasses or goggles.
This microscope is useful for many applications. It can be used in gemology, geology, forestry, archaeology, agriculture and biology. It is appropriate for educational purposes in hospitals and schools. It is great for the exploration of the world of surface details and fine structures of various materials like wood, metal, solder, semiconductor and gemstone. It is perfect for the examination of insects, plants, rocks, stamps, coins, jewel, soldered points, microelectronic components, circuit boards or virtually any three dimensional objects. This scope is an ideal tool for research labs, gemologists, collectors, engravers, watchmakers, jewelers, dies-makers, philatelists, and anyone in semiconductor or electronic industry.
This microscope comes with a next-generation live-view imaging system. The hyper-sensitive CMOS sensor captures images with better efficiency, and much-improved speed compared to CCD sensors. The camera uses global-shutter technology which produces smoother motion in video. The camera uses a standard C-mount interface for maximum compatibility with various microscopy-systems. It can be used as a stand-alone recorder when used with an HDMI monitor or television, or live-streamed to a PC via wi-fi for image-capture and video-recording.
The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. With the ability to calibrate scales at multiple magnifications, the software can be used for multi-level inspection. For Mac and Linux, there is a lite version of the software which can capture video and still images, and includes limited processing features.
This package includes a powerful 150W illuminator with a ring-light and dual fiber-optic goosenecks. The incandescent light-source projects ultra-bright, full-spectrum light which is channeled through either of the included fiber-optic attachments. The dual 22" gooseneck light-guides allow you to use two sources of direct lighting from virtually any angle. The 35" ring-light attachment provides the smoothest ring of encompassing overhead illumination when attached to the microscope's objective housing. The flexible, heavy-duty metal-sheathed guides will hold up to heavy use in your workshop, factory, or lab without worry of crimping or breaking. The light-source is equipped with an active cooling system and an auto-shutoff circuit to avoid overheating in strenuous environments.
Features :
Specifications
Microscope Head | |
Head Type | Trinocular, 45° incline, 360° rotatable |
Optical System | Greenough stereoscopic |
Interpupillary Adjustment | Compensation-free gemel, 54-76mm |
Ocular-port Diameter | 30mm |
Dioptric Adjustment | Both oculars, ±5dp |
Eyepieces | 10X, 20X |
Photo Port | height-adjustable 23mm tube, SM series |
Objective Lenses | 0.7X-4.5X zoom |
Objective Numerical Aperture | 0.065 @ 4.5X 0.02 @ 0.7X |
Objective Resolution | 195 lp/mm @ 4.5X 60 lp/mm @ 0.7X |
Native Field-of-View (10X Eyepieces) | 4.4mm-28.6mm |
Native Working Distance | 100mm |
Auxiliary (Barlow) Lens | 0.5X, 165mm working distance 2X, 30mm working distance |
Stand | |
Stand Type | Track stand |
Stand Dimensions | Base: 11.4" x 11.8" (290mm x 300mm) Column Height: 11.8" (300mm) |
Focusing-track Range | 7.9" (200mm) |
Stage Illumination Plate Diameter | 95mm |
Camera Specifications | |
Sensor Type | CMOS |
Sensor Optical Format | 1/1.2" |
Active Pixels | 2.07M (1920 x 1080) |
Pixel Size | 5.86µm x 5.86µm |
Active Sensor Area | 11.25mm x 6.33mm |
Shutter | global shutter |
Sensitivity | 1016mV @ 1/30s (f/5.6) |
Spectral Response | 380-650nm with IR-cut filter |
Video Preview Resolution (HDMI) | 1920 x 1080 |
Video Preview Framerate (HDMI) | 60fps |
Video Capture Resolution | 1920 x 1080 |
Video Capture Framerate | 30fps (SecureDigital) 25fps max (wi-fi) |
Internal Video Capture Format | ASF |
Photo Capture Resolution | 1920 x 1080 |
Internal Photo Capture Format | JPG |
Recording Media | SecureDigital card |
Connectivity | HDMI, wi-fi |
Wi-fi Standard | 802.11n 150Mbps |
Lens-mount | C-mount |
Compensating Lens | 0.75X |
Power | 12VDC 1A |
Software
OS Requirements | Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+ | ||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Hardware Requirements | Intel Core2 2.8GHz or comparable processor, 4GB RAM | ||||||||||||||||||
Features |
|
Packing List:
