AmScope SM-1TRZZ-FODR-8M SM-1 Series Zoom Trinocular Stereo Microscope 3.5X-180X w/ 150W Halogen Dual Gooseneck & Ring Lights and 8MP USB 2.0 C-mount Camera on Track Stand
Click to zoom
  • Brand:AmScope
  • Part #:SM-1TRZZ-FODR-8M
  • Model #:SM-1 Series
  • Regular Price: $1,667.99
Safe Checkout
Fully secured
Money back Guaranty
100% satisfaction

Overview


Key Features:

  • 3.5X-180X extended zoom magnification using high-quality Greenough stereoscopic objective lenses with 10X and 20X eyepieces, and 0.5X and 2X Barlow lenses.
  • Continuous zoom magnification
  • Super widefield optics offer crystal clear images with a large field-of-view
  • Sturdy precision track-stand with long focus range
  • Trinocular port for adding photo or video capability
  • Monitor and capture photos and videos with the included 8MP USB 2.0 camera. Professional microscopy software for Windows and Mac provide tools for image processing, measuring, and more.
  • A 150W halogen illuminator with two heavy-duty fiber-optic attachments: a 35" ring-light and 22" dual-goosenecks. Active cooling and auto-shutoff avoids overheating in strenuous environments.

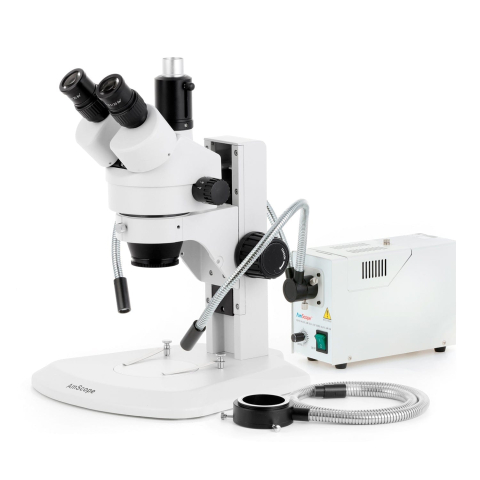

This is a binocular stereo zoom microscope with a precision track-stand. It incorporates all the most excellent features of a high quality laboratory instrument. Designed to meet the demands of modern microscopy applications, this microscope exceeds all expectations. It comes with SUPER widefield optics and offers high resolution and good depth within a broad field of view. It provides crystal clear sharp stereo images with a 4" (100mm) native working distance. Its 45 degree inclined ocular tubes ensure an easy observation and rubber eyeguards provide further comfort. Its trinocular port enables you to add photo or video capability.

The stereo optics provide clear, sharp images with excellent focus-depth and a large working-distance. With 0.7X-4.5X zoom objectives, moving through the magnification range is as easy as turning a knob. 10X and 20X eyepieces are included, as well as 0.5X and 2X Barlow lenses to provide an expanded magnification range from 3.5X-180X, with high-eyepoint optics to accommodate glasses or goggles.

This microscope is useful for many applications. It can be used in gemology, geology, forestry, archaeology, agriculture and biology. It is appropriate for educational purposes in hospitals and schools. It is great for the exploration of the world of surface details and fine structures of various materials like wood, metal, solder, semiconductor and gemstone. It is perfect for the examination of insects, plants, rocks, stamps, coins, jewel, soldered points, microelectronic components, circuit boards or virtually any three dimensional objects. This scope is an ideal tool for research labs, gemologists, collectors, engravers, watchmakers, jewelers, dies-makers, philatelists, and anyone in semiconductor or electronic industry.

Monitor and capture photos and videos with the included 8MP USB2.0 camera. The C-mount camera is specially designed for use with microscopes, allowing you to watch live images, and to record photos or videos on your computer. This ability to view microscopic images on your computer reduces eye-strain, and allows groups of people to view images at the same time. A 0.5X reduction lens is included for use with 23mm-30.5mm ports to capture more of the microscope's field-of-view. Our professional software for Windows provides a wide assortment of capture and photo-editing functions including color correction, time-lapse capture, image stitching, and a full complement of measuring tools. A lite version of our software is available for Mac with essential functionality for capturing photos and videos.

This package includes a powerful 150W illuminator with a ring-light and dual fiber-optic goosenecks. The incandescent light-source projects ultra-bright, full-spectrum light which is channeled through either of the included fiber-optic attachments. The dual 22" gooseneck light-guides allow you to use two sources of direct lighting from virtually any angle. The 35" ring-light attachment provides the smoothest ring of encompassing overhead illumination when attached to the microscope's objective housing. The flexible, heavy-duty metal-sheathed guides will hold up to heavy use in your workshop, factory, or lab without worry of crimping or breaking. The light-source is equipped with an active cooling system and an auto-shutoff circuit to avoid overheating in strenuous environments.

Features :

  • 0.7X-4.5X Continuous Zoom Objective Lenses
  • 30mm Super Widefield Oculars
  • 4" (100mm) Large Native Working Distance
  • 45 Degree Inclined Ocular Tubes
  • Crystal Clear Original True Color Images
  • Erect Sharp Stereo Images over a Super Widefield of View
  • High Resolution with Great Flatness and Contrast
  • Accurate Alignment Ensuring Fatigue-Free Comfortable Observation
  • Both Ocular Tubes with Adjustable Diopters
  • Adjustable Interpupillary Distance
  • Full Optical Glass Elements
  • Precise Ground Glass Lenses
  • All Metal Mechanical Components
  • Trinocular Port for Adding Photo / Video Capability
  • Precision Metal Track Stand with Stain-Resistant Enamel Finish
  • Specifications

    Microscope Head
    Head TypeTrinocular, 45° incline, 360° rotatable
    Optical SystemGreenough stereoscopic
    Interpupillary AdjustmentCompensation-free gemel, 54-76mm
    Ocular-port Diameter30mm
    Dioptric AdjustmentBoth oculars, ±5dp
    Eyepieces10X, 20X
    Photo Portheight-adjustable 23mm tube, SM series
    Objective Lenses0.7X-4.5X zoom
    Objective Numerical Aperture0.065 @ 4.5X
    0.02 @ 0.7X
    Objective Resolution195 lp/mm @ 4.5X
    60 lp/mm @ 0.7X
    Native Field-of-View (10X Eyepieces)4.4mm-28.6mm
    Native Working Distance100mm
    Auxiliary (Barlow) Lens0.5X, 165mm working distance
    2X, 30mm working distance
    Stand
    Stand TypeTrack stand
    Stand DimensionsBase: 11.4" x 11.8" (290mm x 300mm)
    Column Height: 11.8" (300mm)
    Focusing-track Range7.9" (200mm)
    Stage Illumination Plate Diameter95mm

    Camera Specifications
    Sensor TypeCMOS
    Sensor Optical Format1/2.5"
    Active Pixels8.8M (3624 x 2448)
    Pixel Size1.67µm x 1.67µm
    Active Sensor Area6.05mm x 4.09mm
    Shutterelectronic rolling shutter
    Sensitivity0.31V/Lux-sec
    Spectral Response380-650nm with IR-cut filter
    Capture Resolution and Maximum Framerate1.9fps @ 3264x2448
    8fps @ 1600x1200
    27fps @ 800x600
    ConnectivityUSB 2.0
    Lens-mountC-mount
    Compensating Lens0.5X
    Power5VDC over USB

    Software

    OS RequirementsWindows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+
    Hardware RequirementsIntel Core2 2.8GHz or comparable processor, 4GB RAM
    Features
    Windows Version
    Live video preview
    Captures still images and video
    Time-lapse capture
    Exposure and white-balance controls
    Dark-field correction
    Digital binning
    Image processing
    Measurement tools, including lines, arcs, polygons
    Segmentation and counting tools
    Image-stitching, extended depth-of-field, HDR
    Fluorescence color-mapping
    Mac Version
    Live video preview
    Captures still images and video
    Exposure control
    Color adjustment
    Measurement tools, including lines, arcs, polygons

    Packing List:

  • One trinocular stereo microscope head
  • One photo port
  • 10X eyepiece(s)
  • 20X eyepiece(s)
  • One 0.5X Barlow lens
  • One 2X Barlow lens
  • One pair eye-guards
  • One track stand
  • One pair stage clips
  • One black/white stage plate
  • One hex wrench
  • One C-mount USB camera
  • One 0.5X reduction lens
  • Two sizing adapters
  • One USB Type B to USB type A cable
  • One software CD
  • One halogen light source
  • One power cord
  • Two spare fuses
  • One fiber-optic dual-gooseneck attachment
  • One fiber-optic ring-light attachment
  • One ring-light mounting adapter
