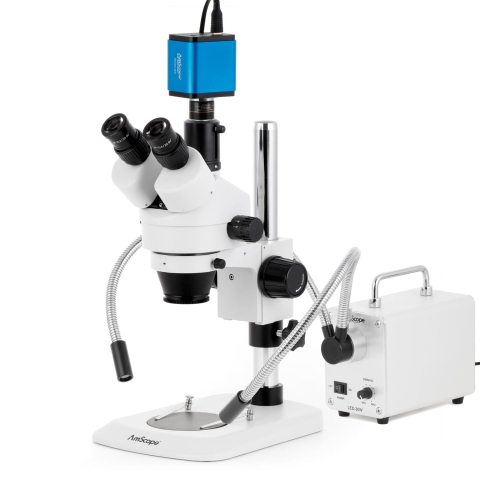

AmScope SM-1TNYY-30WY-HD22 SM-1 Series Industrial Inspection Zoom Trinocular Stereo Microscope 7X-135X w/ 30W LED Double Gooseneck Fiber Optic Lights and 2MP HDMI CMOS C-Mount Camera on Pillar Stand w/ Small Base
Click to zoom
  • Brand:AmScope
  • Part #:SM-1TNYY-30WY-HD22
  • Model #:SM-1 Series
Safe Checkout
Fully secured
Money back Guaranty
100% satisfaction

Overview


Key Features:

  • 7X-135X extended zoom magnification using high-quality Greenough stereoscopic objective lenses with 10X and 15X eyepieces, and a 2X Barlow lens.
  • Continuous zoom magnification
  • Super widefield optics offer crystal clear images with a large field-of-view
  • Sturdy pillar stand with a small footprint and extended, beveled front edge
  • Trinocular port for adding photo or video capability
  • Includes a 1080p/2MP multi-function ultra-sensitive camera with built-in recording that can stream live video over HDMI and connect to a computer using wi-fi
  • A 30W LED illuminator with dual 22" fiber-optic gooseneck light-guides provides two sources of direct lighting from virtually any angle. The cool, energy-efficient light-source with active cooling prevents excessive heat.

This is a trinocular stereo zoom microscope with a compact stand with 12" pillar. The stand's base has an extended, beveled front edge for comfortable hand placement. The microscope incorporates all the most excellent features of a high quality laboratory instrument. Designed to meet the demands of modern microscopy applications, this microscope exceeds all expectations. It comes with SUPER widefield optics and basic table stand. This microscope offers high resolution and good depth within a broad field of view. It provides crystal clear sharp stereo images with a 4" (100mm) native working distance. Its 45 degree inclined ocular tubes ensure an easy observation and rubber eyeguards provide further comfort. Its trinocular port enables you to add photo or video capability.

The stereo optics provide clear, sharp images with excellent focus-depth and a large working-distance. With 0.7X-4.5X zoom objectives, moving through the magnification range is as easy as turning a knob. 10X and 15X eyepieces are included, as well as a 2X Barlow lens to provide an expanded magnification range from 7X-135X, with high-eyepoint optics to accommodate glasses or goggles.

This microscope is useful for many applications. It can be used in gemology, geology, forestry, archaeology, agriculture and biology. It is appropriate for educational purposes in hospitals and schools. It is great for the exploration of the world of surface details and fine structures of various materials like wood, metal, solder, semiconductor and gemstone. It is perfect for the examination of insects, plants, rocks, stamps, coins, jewel, soldered points, microelectronic components, circuit boards or virtually any three dimensional objects. This scope is an ideal tool for research labs, gemologists, collectors, engravers, watchmakers, jewelers, dies-makers, philatelists, and anyone in semiconductor or electronic industry.

This microscope comes with an HDMI-capable digital camera, delivering 1080p video up to 60fps, and 2MP still images, even in low light. The highly-sensitive digital sensor makes this camera ideal for low-light applications, including darkfield and fluorescence. Able to be used as a standalone recording device using Secure Digital memory, or as a wi-fi camera on a networked computer, this is an extremely flexible imaging solution.

Connected to an HDMI monitor or TV, 1080p live video can be viewed at a super-smooth 60fps. The included USB mouse allows you to make adjustments in the internal software for settings such as white-balance and exposure, and control recording functions. As an alternative solution, connect to the camera over WiFi for remote software control, with 25fps streaming. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. With the ability to calibrate scales at multiple magnifications, the software can be used for multi-level inspection. For Mac and Linux, there is a lite version of the software which can capture video and still images, and includes limited processing features.

This package includes a powerful 30W LED illuminator with dual fiber-optic goosenecks. The energy-efficient light-source projects bright, daylight-balanced light which is channeled through dual 22" gooseneck fiber-optic light-guides. This allows you to use two sources of direct lighting from virtually any angle. The flexible, heavy-duty metal-sheathed guides will hold up to heavy use in your workshop, factory, or lab without worry of crimping or breaking. The light-source is equipped with an active cooling system which is much quieter than comparable incandescent illuminators due to the lower heat level generated by LEDs.

Features :

  • An excellent inspection microscope with contemporary table stand
  • 0.7X-4.5X Continuous Zoom Objective Lenses
  • 30mm Super Widefield Oculars
  • 4" (100mm) Large Native Working Distance
  • 45 Degree Inclined Ocular Tubes
  • Crystal Clear Original True Color Images
  • Erect Sharp Stereo Images over a Super Widefield of View
  • High Resolution with Great Flatness and Contrast
  • Accurate Alignment Ensuring Fatigue-Free Comfortable Observation
  • Both Ocular Tubes with Adjustable Diopters
  • Adjustable Interpupillary Distance
  • Full Optical Glass Elements
  • Precise Ground Glass Lenses
  • All Metal Mechanical Components
  • A photo port for adding a camera
  • Metal Pillar Stand Finished with Stain Resistant Enamel
  • Extended, beveled front edge of stand base allows comfortable hand placement
  • Specifications

    Microscope Head
    Head TypeTrinocular, 45° incline, 360° rotatable
    Optical SystemGreenough stereoscopic
    Interpupillary AdjustmentCompensation-free gemel, 54-76mm
    Ocular-port Diameter30mm
    Dioptric AdjustmentBoth oculars, ±5dp
    Eyepieces10X, 15X
    Photo Portheight-adjustable 23mm tube, SM series
    Objective Lenses0.7X-4.5X zoom
    Objective Numerical Aperture0.065 @ 4.5X
    0.02 @ 0.7X
    Objective Resolution195 lp/mm @ 4.5X
    60 lp/mm @ 0.7X
    Native Field-of-View (10X Eyepieces)4.4mm-28.6mm
    Native Working Distance100mm
    Auxiliary (Barlow) Lens2X, 30mm working distance
    Stand
    Stand TypePillar stand with large base
    Stand DimensionsBase: 12.5"x10"x0.75" (320x280x20mm)
    Pillar 12" (300mm) height, 1.25" (32mm) diamater
    Focusing-block Focus Range50mm
    Stage Plate Diameter95mm

    Camera Specifications
    Sensor TypeCMOS
    Sensor Optical Format1/1.9"
    Active Pixels2.07M (1920 x 1080)
    Pixel Size3.75µm x 3.75µm
    Active Sensor Area7.2mm x 4.05mm
    Shutterelectronic rolling shutter
    Sensitivity1120mV @ 1/30s (f/5.6)
    Spectral Response380-650nm with IR-cut filter
    Video Preview Resolution (HDMI)1920 x 1080
    Video Preview Framerate (HDMI)60fps
    Video Capture Resolution1920 x 1080
    Video Capture Framerate30fps (SecureDigital)
    25fps max (wi-fi)
    Internal Video Capture FormatASF
    Photo Capture Resolution1920 x 1080
    Internal Photo Capture FormatJPG
    Recording MediaSecureDigital card
    ConnectivityHDMI, wi-fi
    Wi-fi Standard802.11n 150Mbps
    Lens-mountC-mount
    Compensating Lens0.5X (optional)
    Power12VDC 1A

    Software

    OS RequirementsWindows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+
    Hardware RequirementsIntel Core2 2.8GHz or comparable processor, 4GB RAM
    Features
    Windows Version
    Live video preview
    Captures still images and video
    Time-lapse capture
    Exposure and white-balance controls
    Dark-field correction
    Digital binning
    Image processing
    Measurement tools, including lines, arcs, polygons
    Segmentation and counting tools
    Image-stitching, extended depth-of-field, HDR
    Fluorescence color-mapping
    Mac/Linux Versions
    Live video preview
    Captures still images and video
    Exposure control
    Color adjustment
    Measurement tools, including lines, arcs, polygons

    Packing List:

  • One trinocular stereo microscope head
  • One photo port
  • 10X eyepiece(s)
  • 15X eyepiece(s)
  • One 2X Barlow lens
  • One pair eye-guards
  • One stand base
  • One stand pillar
  • One focusing block
  • One pair stage clips
  • One black/white stage plate
  • One hex wrench
  • Screws and washers
  • One HD digital camera
  • One USB mouse
  • One USB wi-fi adapter
  • One HDMI cable
  • One SD card
  • One power adapter
  • One software CD
  • One LED light source
  • One power cord
  • One fiber-optic dual-gooseneck attachment
