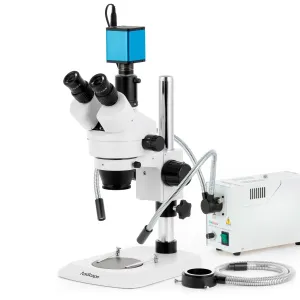

AmScope SM-1TNY-FODR-AF1 SM-1 Series Industrial Inspection Zoom Trinocular Stereo Microscope 7X-90X w/ 150W Halogen Dual Gooseneck & Ring Lights and 1080P HDMI Auto-focus Camera on Pillar Stand w/ Small Base
- Overview
- Customers Also Bought
- Your Recently Viewed Items
- Reviews












Overview
Key Features:
- 7X-90X extended zoom magnification using high-quality Greenough stereoscopic objective lenses and a 2X Barlow lens.
- Continuous zoom magnification
- Super widefield optics offer crystal clear images with a large field-of-view
- Sturdy pillar stand with a small footprint and extended, beveled front edge
- Trinocular port for adding photo or video capability
- Includes an auto-focus 1080p camera designed for live-view monitoring
- A 150W halogen illuminator with two heavy-duty fiber-optic attachments: a 35" ring-light and 22" dual-goosenecks. Active cooling and auto-shutoff avoids overheating in strenuous environments.
This is a trinocular stereo zoom microscope with a compact stand with 12" pillar. The stand's base has an extended, beveled front edge for comfortable hand placement. The microscope incorporates all the most excellent features of a high quality laboratory instrument. Designed to meet the demands of modern microscopy applications, this microscope exceeds all expectations. It comes with SUPER widefield optics and basic table stand. This microscope offers high resolution and good depth within a broad field of view. It provides crystal clear sharp stereo images with a 4" (100mm) native working distance. Its 45 degree inclined ocular tubes ensure an easy observation and rubber eyeguards provide further comfort. Its trinocular port enables you to add photo or video capability.
The stereo optics provide clear, sharp images with excellent focus-depth and a large working-distance. With 0.7X-4.5X zoom objectives, moving through the magnification range is as easy as turning a knob. 10X wide-field eyepieces provide an ample magnification range from 7X to 45X, with high-eyepoint optics to accommodate glasses or goggles. A 2X Barlow lens is included, which can be mounted to the objective housing to double the magnification range to 14X-90X. This will also result in decreased working distance. The combined magnification ranges provide 7X-90X.
This microscope is useful for many applications. It can be used in gemology, geology, forestry, archaeology, agriculture and biology. It is appropriate for educational purposes in hospitals and schools. It is great for the exploration of the world of surface details and fine structures of various materials like wood, metal, solder, semiconductor and gemstone. It is perfect for the examination of insects, plants, rocks, stamps, coins, jewel, soldered points, microelectronic components, circuit boards or virtually any three dimensional objects. This scope is an ideal tool for research labs, gemologists, collectors, engravers, watchmakers, jewelers, dies-makers, philatelists, and anyone in semiconductor or electronic industry.
This microscope comes with a live-view auto-focus camera designed specifically for microscopy. It's designed for live-view only without recording capabilities, making it ideal for QC and repair industries where on-screen monitoring is a necessity, and recording is not. It offers 1080p live-viewing over HDMI with super-smooth 60fps frame-rate. The included USB mouse allows you to control the camera through its easy-to-use interface.
This package includes a powerful 150W illuminator with a ring-light and dual fiber-optic goosenecks. The incandescent light-source projects ultra-bright, full-spectrum light which is channeled through either of the included fiber-optic attachments. The dual 22" gooseneck light-guides allow you to use two sources of direct lighting from virtually any angle. The 35" ring-light attachment provides the smoothest ring of encompassing overhead illumination when attached to the microscope's objective housing. The flexible, heavy-duty metal-sheathed guides will hold up to heavy use in your workshop, factory, or lab without worry of crimping or breaking. The light-source is equipped with an active cooling system and an auto-shutoff circuit to avoid overheating in strenuous environments.
Features :
Specifications
Microscope Head | |
Head Type | Trinocular, 45° incline, 360° rotatable |
Optical System | Greenough stereoscopic |
Interpupillary Adjustment | Compensation-free gemel, 54-76mm |
Ocular-port Diameter | 30mm |
Dioptric Adjustment | Both oculars, ±5dp |
Eyepieces | 10X |
Photo Port | height-adjustable 23mm tube, SM series |
Objective Lenses | 0.7X-4.5X zoom |
Objective Numerical Aperture | 0.065 @ 4.5X 0.02 @ 0.7X |
Objective Resolution | 195 lp/mm @ 4.5X 60 lp/mm @ 0.7X |
Native Field-of-View (10X Eyepieces) | 4.4mm-28.6mm |
Native Working Distance | 100mm |
Auxiliary (Barlow) Lens | 2X, 30mm working distance |
Stand | |
Stand Type | Pillar stand with large base |
Stand Dimensions | Base: 12.5"x10"x0.75" (320x280x20mm) Pillar 12" (300mm) height, 1.25" (32mm) diamater |
Focusing-block Focus Range | 50mm |
Stage Plate Diameter | 95mm |
Camera Specifications:
Packing List:
