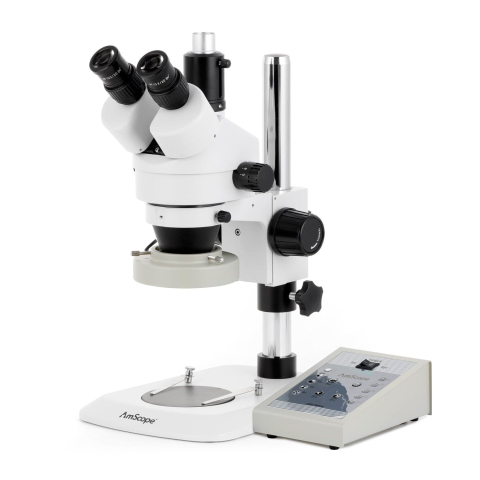

AmScope SM-1TNX-80AM-14M3 SM-1 Series Industrial Inspection Zoom Trinocular Stereo Microscope 3.5X-45X w/ 80 LED Direction Variable Ring Light and 14MP USB 3.0 C-mount Camera on Pillar Stand w/ Small Base
Click to zoom
  • Brand:AmScope
  • Part #:SM-1TNX-80AM-14M3
  • Model #:SM-1 Series
  • Regular Price: $973.99
Out Of Stock
Safe Checkout
Fully secured
Money back Guaranty
100% satisfaction

Overview


Key Features:

  • 3.5X-45X extended zoom magnification using high-quality Greenough stereoscopic objective lenses and a 0.5X Barlow lens.
  • Continuous zoom magnification
  • Super widefield optics offer crystal clear images with a large field-of-view
  • Sturdy pillar stand with a small footprint and extended, beveled front edge
  • Trinocular port for adding photo or video capability
  • Monitor and capture photos and videos with the included 14MP USB 3.0 camera. Professional microscopy software for Windows, Mac, and Linux provide tools for image processing, measuring, and more.
  • The flexible 80-LED ring-light uses a multi-zone controller to project either directional or fully-encompassing light.

This is a trinocular stereo zoom microscope with a compact stand with 12" pillar. The stand's base has an extended, beveled front edge for comfortable hand placement. The microscope incorporates all the most excellent features of a high quality laboratory instrument. Designed to meet the demands of modern microscopy applications, this microscope exceeds all expectations. It comes with SUPER widefield optics and basic table stand. This microscope offers high resolution and good depth within a broad field of view. It provides crystal clear sharp stereo images with a 4" (100mm) native working distance. Its 45 degree inclined ocular tubes ensure an easy observation and rubber eyeguards provide further comfort. Its trinocular port enables you to add photo or video capability.

The stereo optics provide clear, sharp images with excellent focus-depth and a large working-distance. With 0.7X-4.5X zoom objectives, moving through the magnification range is as easy as turning a knob. 10X wide-field eyepieces provide an ample magnification range from 7X to 45X, with high-eyepoint optics to accommodate glasses or goggles. A 0.5X Barlow lens is included, which can be mounted to the objective housing to halve the magnification range to 3.5X-22.5X. This also increases the working distance. The combined magnification ranges provide 3.5X-45X.

This microscope is useful for many applications. It can be used in gemology, geology, forestry, archaeology, agriculture and biology. It is appropriate for educational purposes in hospitals and schools. It is great for the exploration of the world of surface details and fine structures of various materials like wood, metal, solder, semiconductor and gemstone. It is perfect for the examination of insects, plants, rocks, stamps, coins, jewel, soldered points, microelectronic components, circuit boards or virtually any three dimensional objects. This scope is an ideal tool for research labs, gemologists, collectors, engravers, watchmakers, jewelers, dies-makers, philatelists, and anyone in semiconductor or electronic industry.

Monitor and capture photos and videos with the included 14.0MP USB3.0 camera. The C-mount camera is specially designed for use with microscopes, allowing you to watch live images, and to record photos or videos on your computer. This ability to view microscopic images on your computer reduces eye-strain, and allows groups of people to view images at the same time. The USB 3.0 connection provides greater bandwidth for faster frame-rates. A 0.5X reduction lens is included for use with 23mm-30.5mm ports to capture more of the microscope's field-of-view. Our professional software for Windows provides a wide assortment of capture and photo-editing functions including color correction, time-lapse capture, image stitching, and a full complement of measuring tools. A lite version of our software is available for Mac and Linux with essential functionality for capturing photos and videos.

This package includes an 80-LED ring-light with a multi-zone controller for bright and cool illumination using multiple projection patterns. This ring-light mounts to the microscope's objective housing, and can project fully-encompassing light, or isolated areas for directional lighting. Whether used as the sole light-source or in combination with additional illuminators, the ring-light produces a crucial light pattern for virtually any application. Energy-efficient and producing low heat, this ring-light can be used with biological specimens as well as industrial.

Features :

  • An excellent inspection microscope with contemporary table stand
  • 0.7X-4.5X Continuous Zoom Objective Lenses
  • 30mm Super Widefield Oculars
  • 4" (100mm) Large Native Working Distance
  • 45 Degree Inclined Ocular Tubes
  • Crystal Clear Original True Color Images
  • Erect Sharp Stereo Images over a Super Widefield of View
  • High Resolution with Great Flatness and Contrast
  • Accurate Alignment Ensuring Fatigue-Free Comfortable Observation
  • Both Ocular Tubes with Adjustable Diopters
  • Adjustable Interpupillary Distance
  • Full Optical Glass Elements
  • Precise Ground Glass Lenses
  • All Metal Mechanical Components
  • A photo port for adding a camera
  • Metal Pillar Stand Finished with Stain Resistant Enamel
  • Extended, beveled front edge of stand base allows comfortable hand placement
  • Specifications

    Microscope Head
    Head TypeTrinocular, 45° incline, 360° rotatable
    Optical SystemGreenough stereoscopic
    Interpupillary AdjustmentCompensation-free gemel, 54-76mm
    Ocular-port Diameter30mm
    Dioptric AdjustmentBoth oculars, ±5dp
    Eyepieces10X
    Photo Portheight-adjustable 23mm tube, SM series
    Objective Lenses0.7X-4.5X zoom
    Objective Numerical Aperture0.065 @ 4.5X
    0.02 @ 0.7X
    Objective Resolution195 lp/mm @ 4.5X
    60 lp/mm @ 0.7X
    Native Field-of-View (10X Eyepieces)4.4mm-28.6mm
    Native Working Distance100mm
    Auxiliary (Barlow) Lens0.5X, 165mm working distance
    Stand
    Stand TypePillar stand with large base
    Stand DimensionsBase: 12.5"x10"x0.75" (320x280x20mm)
    Pillar 12" (300mm) height, 1.25" (32mm) diamater
    Focusing-block Focus Range50mm
    Stage Plate Diameter95mm

    Camera Specifications
    Sensor TypeCMOS
    Sensor Optical Format1/2.3"
    Active Pixels13.5M (4096 x 3288)
    Pixel Size1.4µm x 1.4µm
    Active Sensor Area5.73mm x 4.6mm
    Shutterelectronic rolling shutter
    Sensitivity0.724V/Lux-sec
    Spectral Response380-650nm with IR-cut filter
    Capture Resolution and Maximum Framerate6.2fps @ 4096x3286
    21fps @ 2048x1644
    53fps @ 1024x822
    ConnectivityUSB 3.0
    Lens-mountC-mount
    Compensating Lens0.5X
    Power5VDC over USB

    Software

    OS RequirementsWindows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+
    Hardware RequirementsIntel Core2 2.8GHz or comparable processor, 4GB RAM
    Features
    Windows Version
    Live video preview
    Captures still images and video
    Time-lapse capture
    Exposure and white-balance controls
    Dark-field correction
    Digital binning
    Image processing
    Measurement tools, including lines, arcs, polygons
    Segmentation and counting tools
    Image-stitching, extended depth-of-field, HDR
    Fluorescence color-mapping
    Mac/Linux Versions
    Live video preview
    Captures still images and video
    Exposure control
    Color adjustment
    Measurement tools, including lines, arcs, polygons

    Packing List:

  • One trinocular stereo microscope head
  • One photo port
  • 10X eyepiece(s)
  • One 0.5X Barlow lens
  • One pair eye-guards
  • One stand base
  • One stand pillar
  • One focusing block
  • One pair stage clips
  • One black/white stage plate
  • One hex wrench
  • Screws and washers
  • One C-mount USB camera
  • One 0.5X reduction lens
  • Two sizing adapters
  • One USB 3.0 Type B to type A cable
  • One software CD
  • One LED ring-light
  • One power controller
  • One AC adapter
  • One ring-light mounting adapter
