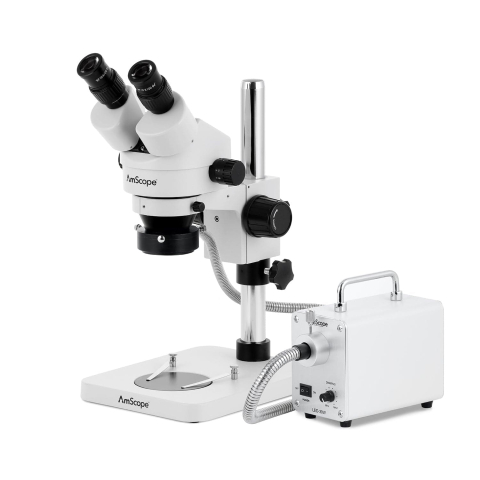

AmScope SM-1BSX-30WR-M SM-1 Series Inspection and Dissecting Zoom Binocular Stereo Microscope 3.5X-45X w/ 30W LED Fiber Optic Ring Light and 1.3MP USB 2.0 C-mount Camera on Compact Pillar Stand
Click to zoom
  • Brand:AmScope
  • Part #:SM-1BSX-30WR-M
  • Model #:SM-1 Series
  • Regular Price: $1,276.99
Safe Checkout
Fully secured
Money back Guaranty
100% satisfaction

Overview


Key Features:

  • 3.5X-45X extended zoom magnification using high-quality Greenough stereoscopic objective lenses and a 0.5X Barlow lens.
  • Continuous zoom magnification
  • Super widefield optics offer crystal clear images with a large field-of-view
  • Sturdy pillar stand with a small footprint
  • Monitor and capture photos and videos with the included 1.3MP USB 2.0 camera. Professional microscopy software for Windows, Mac, and Linux provide tools for image processing, measuring, and more.
  • A 30W LED illuminator with 35" heavy-duty fiber-optic ring-light provides the smoothest overhead lighting possible. The cool, energy-efficient light-source with active cooling prevents excessive heat.

This is a binocular stereo zoom microscope with a compact stand with 12" pillar. The stand's base has a small footprint to take up minimal space. The microscope incorporates all the most excellent features of a high quality laboratory instrument. Designed to meet the demands of modern microscopy applications, this microscope exceeds all expectations. It comes with SUPER widefield optics and basic table stand. This microscope offers high resolution and good depth within a broad field of view. It provides crystal clear sharp stereo images with a 4" (100mm) native working distance. Its 45 degree inclined ocular tubes ensure an easy observation and rubber eyeguards provide further comfort.

The stereo optics provide clear, sharp images with excellent focus-depth and a large working-distance. With 0.7X-4.5X zoom objectives, moving through the magnification range is as easy as turning a knob. 10X wide-field eyepieces provide an ample magnification range from 7X to 45X, with high-eyepoint optics to accommodate glasses or goggles. A 0.5X Barlow lens is included, which can be mounted to the objective housing to halve the magnification range to 3.5X-22.5X. This also increases the working distance. The combined magnification ranges provide 3.5X-45X.

This microscope is useful for many applications. It can be used in gemology, geology, forestry, archaeology, agriculture and biology. It is appropriate for educational purposes in hospitals and schools. It is great for the exploration of the world of surface details and fine structures of various materials like wood, metal, solder, semiconductor and gemstone. It is perfect for the examination of insects, plants, rocks, stamps, coins, jewel, soldered points, microelectronic components, circuit boards or virtually any three dimensional objects. This scope is an ideal tool for research labs, gemologists, collectors, engravers, watchmakers, jewelers, dies-makers, philatelists, and anyone in semiconductor or electronic industry.

Monitor and capture photos and videos with the included 1.3MP USB2.0 camera. The C-mount camera is specially designed for use with microscopes, allowing you to watch live images, and to record photos or videos on your computer. This ability to view microscopic images on your computer reduces eye-strain, and allows groups of people to view images at the same time. A 0.37X reduction lens is included for use with 23mm-30.5mm ports to capture more of the microscope's field-of-view. Our professional software for Windows provides a wide assortment of capture and photo-editing functions including color correction, time-lapse capture, image stitching, and a full complement of measuring tools. A lite version of our software is available for Mac and Linux with essential functionality for capturing photos and videos.

This package includes a powerful 30W LED illuminator with a fiber-optic ring-light. The energy-efficient light-source projects bright, daylight-balanced light which is channeled through the 35" fiber-optic light-guide which provides the smoothest ring of encompassing illumination. The flexible, heavy-duty metal-sheathed guide will hold up to heavy use in your workshop, factory, or lab without worry of crimping or breaking. The light-source is equipped with an active cooling system which is much quieter than comparable incandescent illuminators due to the lower heat level generated by LEDs.

Specifications

Microscope Head
Head TypeBinocular, 45° incline, 360° rotatable
Optical SystemGreenough stereoscopic
Interpupillary AdjustmentCompensation-free gemel, 54-76mm
Ocular-port Diameter30mm
Dioptric AdjustmentBoth oculars, ±5dp
Eyepieces10X
Objective Lenses0.7X-4.5X zoom
Objective Numerical Aperture0.065 @ 4.5X
0.02 @ 0.7X
Objective Resolution195 lp/mm @ 4.5X
60 lp/mm @ 0.7X
Native Field-of-View (10X Eyepieces)4.4mm-28.6mm
Native Working Distance100mm
Auxiliary (Barlow) Lens0.5X, 165mm working distance
Stand
Stand TypePillar stand with large base
Stand DimensionsBase: 10" x 7/8" x 10.75" (254 x 200 x 275mm)
Pillar 12" (300mm) height, 1.25" (32mm) diamater
Focusing-block Focus Range50mm
Stage Plate Diameter95mm

Camera Specifications
Sensor TypeCMOS
Sensor Optical Format1/3"
Active Pixels1.3M (1280 x 1024)
Pixel Size3.6µm x 3.6µm
Active Sensor Area4.60mm x 3.70mm
Shutterelectronic rolling shutter
Sensitivity1.0V/Lux-sec
Spectral Response380-650nm with IR-cut filter
Capture Resolution and Maximum Framerate15fps @ 1280x1024
26fps @ 640x512
50fps @ 320x256
ConnectivityUSB 2.0
Lens-mountC-mount
Compensating Lens0.37X
Power5VDC over USB

Software

OS RequirementsWindows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+
Hardware RequirementsIntel Core2 2.8GHz or comparable processor, 4GB RAM
Features
Windows Version
Live video preview
Captures still images and video
Time-lapse capture
Exposure and white-balance controls
Dark-field correction
Digital binning
Image processing
Measurement tools, including lines, arcs, polygons
Segmentation and counting tools
Image-stitching, extended depth-of-field, HDR
Fluorescence color-mapping
Mac/Linux Versions
Live video preview
Captures still images and video
Exposure control
Color adjustment
Measurement tools, including lines, arcs, polygons

Packing List:

  • One binocular stereo microscope head
  • 10X eyepiece(s)
  • One 0.5X Barlow lens
  • One pair eye-guards
  • One stand base
  • One stand pillar
  • One focusing block
  • One pair stage clips
  • One black/white stage plate
  • One hex wrench
  • Screws and washers
  • One C-mount USB camera
  • One 0.37X reduction lens
  • Two sizing adapters
  • One USB Type B to USB type A cable
  • One software CD
  • One LED light source
  • One power cord
  • One fiber-optic ring-light attachment
  • One ring-light mounting adapter
