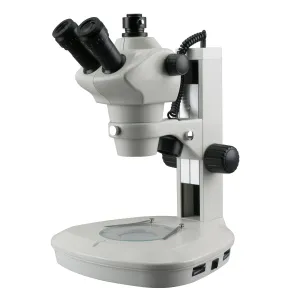

AmScope SF-2TR-WF SF-2 Series Zoom Trinocular Stereo Microscope 8X-50X Magnification onTrack Stand w/ 2 LED Lights, 720p Wi-Fi Camera

AmScope SF-2TR-WF SF-2 Series Zoom Trinocular Stereo Microscope 8X-50X Magnification onTrack Stand w/ 2 LED Lights, 720p Wi-Fi Camera
Click to zoom
  • Overview
  • Customers Also Bought
  • Your Recently Viewed Items
  • Reviews
  • Brand:AmScope
  • Part #:SF-2TR-WF
  • Model #:SF-2 Series
Condition: new
Warranty

Overview

AmScope SF-2 Series Zoom Trinocular Stereo Microscope 8X-50X Magnification onTrack Stand with 2 LED Lights & 720p Wi-Fi Camera

Features:

  • 8X-50X Continuous trinocular parfocal zoom magnification power
  • Extreme widefield optics offering crisp clear stereo images
  • Focusable extreme widefield eypieces
  • 4.5" Working Distance with large 1-1/4" field of view
  • Sturdy track stand with built-in top & bottom LED lights
  • Includes a 720P wi-fi camera and professional microscopy software for capturing photos and videos on your PC. Compatible with Windows, Mac, and Linux
  • Capture images on your smartphone or tablet using the mobile app. Sharing images was never so easy.

This precision instrument is a high quality 8x-50x binocular stereo zoom microscope, and features extreme widefield optics, both incident (top) and transmitted (bottom) LED lighting systems, and a convenient track stand for easy focusing. Additionally, this package includes a 720p Wi-Fi camera, enabling you to stream your microscope's view to your compatible Android or iOS tablet or cell phone! Optically, the large zoom magnification range of 8x-50x maintains focus at a 4.5" (115mm) working distance. This parfocal feature provides ample room for various sample sizes, and with its 360 degree swiveling head and 45 degree ocular tubes, the ultimate experience in comfort can be achieved to your liking. For illumination, a 2-3/4" (70mm) LED plate is installed, providing ample lighting. These features all add up to a great microscope for industrial, educational, and professional applications for research labs, hospitals, schools, veterinary offices, and more. Because of the LED lighting system's lack of heat emission, it becomes extremely useful for organic or temperature-sensitive applications, such as live tissue dissection, or observing live organisms, such as insects, plans, or virtually any translucent object. Equipping it with a ring light or gooseneck illuminator (sold separately) serves to add opaque sample viewing, making it a perfect all in one system. Our new stereo microscope provides all the features of a high quality laboratory instrument at an affordable price, all while coming brand new in a factory sealed box.

Features :

  • A great microscope with erect sharp stereo images and low heat releasing
  • Contemporary brightness-adjustable LED top & bottom illumination
  • 8X-50X large parfocal zoom range continuous magnification
  • 45 degree inclined 360 degree swiveling trinocular head with extreme widefield eyepieces
  • 30mm extreme widefield focus-adjustable eyepieces
  • High resolution with great depth and contrast
  • Crystal clear original true color images
  • Adjustable diopters on each ocular tube
  • Metal track stand finished with a stain resistant enamel
  • Accurate alignment ensures fatigue-free viewing
  • Full optical and precise ground glass elements
  • All metal mechanical components
  • Adjustable interpupillary distance
  • Manufactured under restrict ISO 9001 quality control system
  • Five (5) year manufacturer warranty

    • Specifications :

  • Head: 45 degree inclined 360 degree swiveling binocular
  • Eyepiece: 30mm extreme widefield focus-adjustable 10X/22
  • Objective: 0.8X-5.0X
  • Diopter Adjustment: +/-5dp
  • Interpupillary Distance: 2-0" - 2-15/16"(52-75mm)
  • Working Distance: 4.5" (115mm)
  • 0.4X reduction lens
  • LED Plate (Bottom) Illuminator: 2-3/4" (70mm in diameter) LED
  • Shipping Weight: 25 lbs

    • Camera Specifications:

  • Sensor: Aptina MT9P001(C) CMOS (color)
  • Sensor Size: 1/2.5" (6.55mm(H) x 4.92mm(V), diagonal 8.19mm)
  • Resolution: 2048x1536 (approx.3,200,000 pixels)
  • Reduction Lens: 0.5X
  • Pixel Size: 2.2μm x 2.2μm
  • G Sensitivity: 1.0v / lux-sec (550nm)
  • Frame Rate: 10fps @ 1280x720
  • Exposure: Auto
  • Scan Mode: Progressive
  • Dynamic Range: 61dB
  • A/D Converter: 12-bit Parallel, 8-bit R.G.B to computer
  • SN Ratio: 43dB
  • Spectral Range: 380-650nm (with IR-filter)
  • Binning: 1x1
  • White balance: ROI White Balance/ Manual Temp-Tint Adjustment
  • Color Rendering Technique: Ultra Fine Color Engine
  • Capture/Control API: Native C/C++, C# for Windows Operating System
  • Recording System: Still Picture and Movie
  • Cooling System: Natural
  • Operating Temperature: -10°C~50°C
  • Storage Temperature: -20°C~60°C
  • Operating Humidity: 30~80%RH
  • Storage Humidity: 10~60%RH
  • Power Supply: DC 5V over USB Port

    • Software Features:

  • Operating System: Windows XP/Vista/7/8 (32 & 64 bit), Mac OS X, Linux
  • Computer Requirements: CPU equals to Intel Core2 2.8GHz or higher, Memory: 2GB or more, USB2.0 port
  • Advanced software for Windows:
    - offers Stitching, EDF, video recording and measurement functions
    - conducts measurements for lengths, angles, arcs, areas and etc.
    - gives your computer screens the same field of view as your microscope's eyepiece
    - saves still images in BMP, TIFF, JPG, PICT, PTL or other formats
    - edit and process microscopy images in a manner similar to PhotoShop
    - live video and still image capture can be set in different resolutions simultaneously

    • More features: add layers, watermarks, mosaics, tiles; adjust color balance, exposure, saturation, contrast, orientation; change resolution, histogram, granulation, diffusion; transform images via edge detection, digital image warping; conducts measurements for single, parallel or perpendicular lines and rectangular, elliptical and irregular areas; adds notes, measurements, text, arrows, labels, and etc. using customizable text with different sizes and colors; conducts measurements in microns, millimeters, centimeters, inches, feet, and etc. under any magnification powers with desired tolerances
  • Life-time free software upgrades

    • Packing List :

  • One Trinocular Stereo Zoom Head
  • One Pair of Extreme Widefield Focusable 10X Eyepieces
  • One Track Stand with LED Plate and Focusing Rack
  • One Pair of Clips
  • One Power Cord
  • One 720p Wi-Fi Camera
  • One USB cable
  • Camera Adapters (30mm and 30.5mm)
  • One Power Adapter for Camera
  • User's Manual Download
