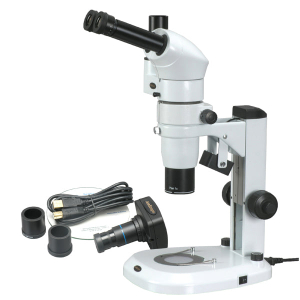

AmScope PM240T-8M PM240 Series Zoom Trinocular Stereo Microscope 8X-80X Magnification on Track Stand w/ Common Main Objective(CMO) and 8MP Camera

Standard Viewing Head

The standard viewing head keeps things simple. Elongated ocular tubes are mounted at a 20° angle, and allow viewing from a comfortable distance. Alignment with the eyes is done by using a sliding interpupillary adjuster. The tubes lack integrated diopters, so dioptric adjustments can be made by using focusable eyepieces when needed.

Optics

The zoom module provides a large 10:1 zoom range covering magnifications from 0.8X-8X. When used with the standard 1X objective and 10X eyepieces, the microscope produces images with stunning clarity at 8X-80X total magnification.

Infinity Optics

This microscope uses an infinity-corrected optical system which allows for a modular design in which accessories can be added without affecting magnification or image quality. Such accessories include photo ports and coaxial illumination systems.

Keystoning

By using a single objective lens and parallel optical paths, the CMO design avoids a type of distortion seen in other stereo microscopes called the keystone effect. Tilted objective lenses cause the independent images to be distorted in a manner where one side is larger than the other. This also causes gradual changes in focus and reduced depth-of-field. CMO microscopes do not suffer from this distortion, allowing for improved resolution and depth.

Dedicated Photo Port

This model includes an inline photo-port module which can be installed between the viewing head and zoom module. This adds a dedicated port for attaching a camera, avoiding the need to use one of the ocular tubes. The side-arm-style port uses a 23mm tube to accommodate a wide range of cameras with reduction lenses. When the port is switched open, it shares light with the viewing head, allowing use of all ports simultaneously. Closing the port allows all light to be passed through to the eyepieces for maximum brightness.

Support and Illumination

The dual-illumination stand provides a turnkey solution for biological and industrial applications. LEDs are used for the overhead and sub-stage light-sources, providing bright, low-heat illumination. Reflected and transmitted illumination allows for a wide gamut of specimens to be viewed. The track-style stand uses rack-and-pinion movement and large, coaxial coarse/fine control-knobs for precisely adjusting focus. The stage uses large 100mm circular plates for placing specimens. A transparent glass plate is included for use with the sub-stage transmitted illumination, allowing for a range of biological or other translucent specimens. A reversible black-white plate can be used when transmitted light is not needed, providing two options for enhancing specimen-contrast.

Digital Imaging

Monitor and capture photos and videos with the included 8MP USB2.0 camera. The C-mount camera is specially designed for use with microscopes, allowing you to watch live images, and to record photos or videos on your computer. This ability to view microscopic images on your computer reduces eye-strain, and allows groups of people to view images at the same time. A 0.5X reduction lens is included for use with 23mm-30.5mm ports to capture more of the microscope's field-of-view. Our professional software for Windows provides a wide assortment of capture and photo-editing functions including color correction, time-lapse capture, image stitching, and a full complement of measuring tools. A lite version of our software is available for Mac with essential functionality for capturing photos and videos.
